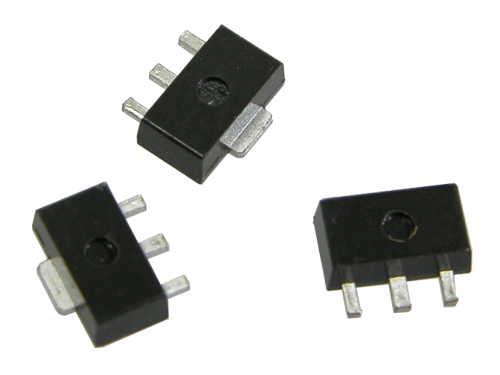

DN500F

Pinout






Specifications

Characteristic	Symbol	Ratings	Unit
Collector-Base voltage	VCBO	15	V
Collector-Emitter voltage	VCEO	12	V
Emitter-Base voltage	VEBO	5	V
Collector current	IC	5	A
Collector dissipation	PC	0.5	W
	P C*	2
Junction temperature	Tj	150
Storage temperature	Tstg	-55~150

Description

Bipolar transistors, also called junction type transistors, are a kind of transistors. Unlike field-effect transistors (unipolar transistors), DN500s are called bipolar because DN500s  have two kinds of carriers (hole, electron)
The DN500 features:
Extremely low collector-to-emitter saturation voltage ( V_CE(SAT) =0.2V Typ. @I_C/I_B=3A/150mA)
Suitable for low voltage large current drivers
Complementary pair with DP500F
Switching Application
