DMC73C167

Features: *8-bit architecture with CMOS technology*Flexible memory configurations - 16K-bytes on-chip ROM - 256-byte on-chip RAM register file - Memory-mapped I/O ports for easy addressing*Three on-chip timers - One 16-bit timer with 5-bit prescaler, 16-bit capture latch, and timer outputs - Two 8...

product image

DMC73C167 Picture
See larger image
SeekIC No. : 004327468 Detail

DMC73C167: Features: *8-bit architecture with CMOS technology*Flexible memory configurations - 16K-bytes on-chip ROM - 256-byte on-chip RAM register file - Memory-mapped I/O ports for easy addressing*Three on-...

DMC73C167 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DMC73C167
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*8-bit architecture with CMOS technology
*Flexible memory configurations
     -  16K-bytes on-chip ROM
     -  256-byte on-chip RAM register file
     -  Memory-mapped I/O ports for easy addressing
*Three on-chip timers
     -  One 16-bit timer with 5-bit prescaler, 16-bit capture latch, and timer outputs
     -  Two 8-bit timers with 2-bit prescaler, 8-bit capture latch, and timer outputs
     -  Direct connection of timer clock through I/O ports for event counting
     -  Generate Internal interrupts and automatic timer reload
*One On-chip A/D converter
     -  4-bit resolution with successive approximation conversion
     -  Conversion speed of 40 machine cycles
*On-chip OSD generator
     -  Display pattern : 20 columns x   2 lines (hardware)
                                   20 columns x 12 lines (software)
     -  Character font : 12 dots x 18 dots
     -  Number of characters : 128 fonts
     -  Color : 8 colors per character
*Ten PWM D/A converters
     -  One 14-bit PWM output port with polarity control
     -  Nine 6-bit PWM output ports with polarity control
*On-chip I2C bus interface hardware
     -  Master mode operation
     -  Slave mode operation
     -  Multi-master mode operation
*Flexible interrupt handling and powerful instruction set
     -  Three external interrupts with schmitt trigger input
     -  No limitation on sub-routine calls (dependent on stack size only)
     -  Software calls through vector table (maximum 24 vectors)
     -  Software monitoring of interrupt status
     -  Precise interrupt timing through capture latch
     -  Global and individual interrupt masking
     -  Bit, nibble, word manipulation, and multiply / divide instructions
*General purpose input/output ports
     -  Eight output only pins
     -  20 input/output pins
*Operating range
     -  CPU clock : 2MHz to 6MHz
     -  OSD clock : 3MHz to 8MHz
     -  Temperature : 0  to 70
*Package
     - Primary : 54-pin Shrink dual in line package
     -  OTP : 54-pin Shrink dual in line package
*Development support
     -  System evaluation and piggyback prototyping device : SE73CP87B
     -  Low-cost evaluation module : EVM73C00A and ADP73C167
     -  OTP : TMS73CE167
     -  Assembler/linker cross-support for popular hosts

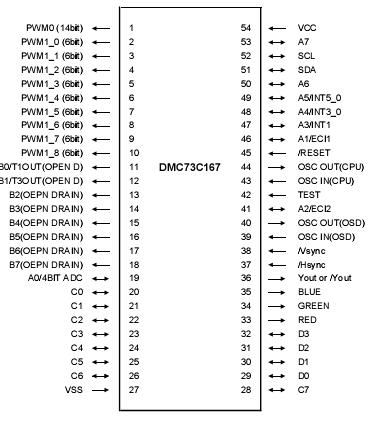

Pinout

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Supply voltage range* VCC -0.3 through 7.0 V
Input voltage range VI -0.3 through VCC +0.3 V
Output
voltage range		 Port B0-B3, PWM1_n   -0.3 through 15.0 V
Except B0-B3, PWM1_n -0.3 through VCC +0.3
Input current II ±10 mA
Output
current		 Port B4-B7 IO
Max 20		 mA
Except B4-B7 Max 10
Total low-level output current IOL Max 120 mA
Power dissipation PD 0.5 W
Storage temperature range TSTG -55 through +125



Description

  The DMC73C167 is an 8-bit CMOS microcontroller with 16K bytes of on-chip ROM, 256 bytes of on-chip RAM, OSD (On Screen Display), A/D converter,  10 PWM output ports, three timers, multi-master I2C communications port, 8 output only pins, and 20 normal I/O pins. The high-performance CPU internal peripherals allow flexible design in industrial equipment, televisions, camcorders, VCRs, and other home appliances.
