DMC-50747NF-AK

LCD MODULE 16 X 2 CHIP ON GLASS

product image

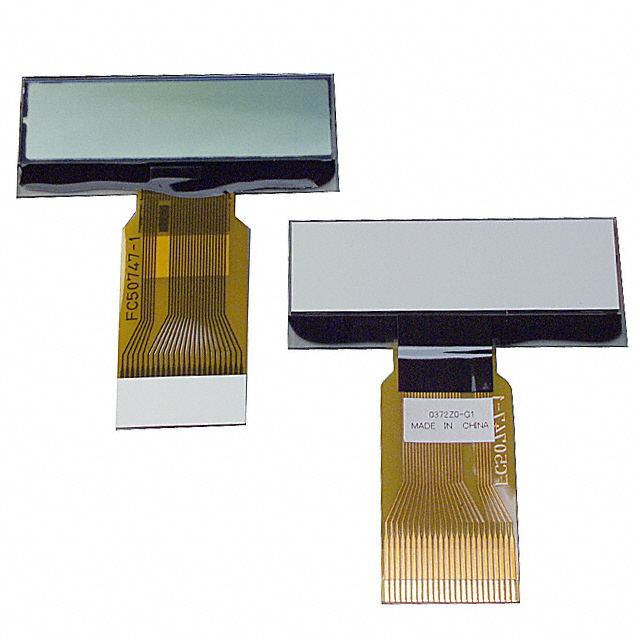

DMC-50747NF-AK Picture
See larger image
SeekIC No. : 003611065 Detail

DMC-50747NF-AK: LCD MODULE 16 X 2 CHIP ON GLASS

DMC-50747NF-AK Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DMC-50747NF-AK
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: DMC-50747 Manufacturer: Kyocera Display America, Inc.
Display Type: FSTN - Film Super-Twisted Nematic Supply Voltage - Max : 5.25 V, 5.25 V, 12.5 V
Display Mode: Reflective Number of Digits/Alpha: 32
Outline L x W x H: 64.20mm x 27.60mm x 2.20mm Viewing Area: 60.20mm L x 16.60mm W
Backlight: Without Backlight Display Format: 16 x 2
Character Size: 4.85mm H x 2.95mm W Character Format: 5 x 7 Dots
Voltage - Supply: +3 V, -7 V Dot Size: 0.48mm W x 0.70mm H
Interface: Parallel

Description

Display Mode: Reflective
Backlight: Without Backlight
Operating Temperature: 0°C ~ 50°C
Number of Digits/Alpha: 32
Display Format: 16 x 2
Interface: Parallel
Manufacturer: Kyocera Display America, Inc.
Display Type: FSTN - Film Super-Twisted Nematic
Character Format: 5 x 7 Dots
Series: DMC-50747
Outline L x W x H: 64.20mm x 27.60mm x 2.20mm
Viewing Area: 60.20mm L x 16.60mm W
Character Size: 4.85mm H x 2.95mm W
Voltage - Supply: +3 V, -7 V
Dot Size: 0.48mm W x 0.70mm H


Specifications

Parameter Symbol Conditions Min. Max. Units
Supply Voltage
(Logic) 		VDD-VSS - -0.3 6.0 V
Supply Voltage
(LCD Drive) 		VDD-VEE V5=VOUT -0.3 16.0 V
Input Voltage VI - -0.3 VDD+0.3 V
