DM9008

Features: *Single chip solution for IEEE 802.3, 10BASE-T,10BASE2 and 10BASE5*Integrated ISA interface, 8Kx16 SRAM, Media Access Control, ENDEC and 10BASE-T transceiver*Supports ISA Plug and Play configuration*Software-compatible with NOVELL NE2000*Supports PnP and Non-PnP Auto-switching*PnP, Non-P...

product image

DM9008 Picture
See larger image
SeekIC No. : 004327363 Detail

DM9008: Features: *Single chip solution for IEEE 802.3, 10BASE-T,10BASE2 and 10BASE5*Integrated ISA interface, 8Kx16 SRAM, Media Access Control, ENDEC and 10BASE-T transceiver*Supports ISA Plug and Play con...

DM9008 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DM9008
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*Single chip solution for IEEE 802.3, 10BASE-T,10BASE2 and 10BASE5
*Integrated  ISA interface, 8Kx16 SRAM, Media Access Control, ENDEC and 10BASE-T transceiver
*Supports ISA Plug and Play configuration
*Software-compatible with NOVELL NE2000
*Supports PnP and Non-PnP Auto-switching
*PnP, Non-PnP and Auto-switch mode software selectable
*8 interrupt lines selectable
*Auto-Polarity detection and correction
*Selectable 8 and 16-bit slot mode
*Provides auto-detection/auto-switching for 10BASE-T Transceiver and Attachment Unit Interface (AUI)
*External EEPROM programmable
*Supports BOOT-ROM page  mode
*Loopback capability for diagnostics
*Receiver and collision squelch circuit to reduce noise
*Low-power CMOS process with single 5V power supply
*Built-in pre-distortion resisters for 10BASE-T application
*100-pin QFP package


Pinout

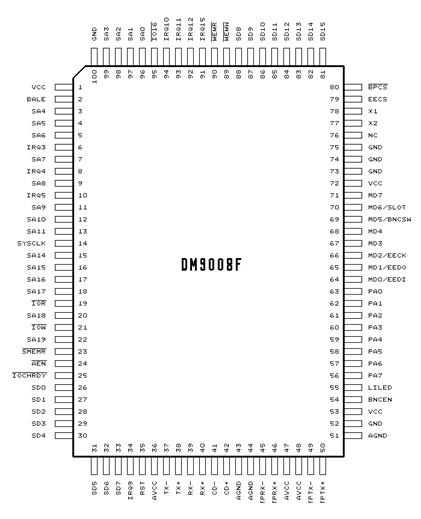

Connection Diagram


Specifications

Supply Voltage (VCC) . . . . . . . . . .. . . . . . -0.5V to +7.0V
DC Input Voltage (Vin) . . . . . . . .  . .  -0.5V to VCC +0.5V
DC Output Voltage (Vout) . . . . . . .  . -0.5V to VCC +0.5V
Storage Temperature Range (Tstg) . . .  -65 to + 150
Power Dissipation (PD) . . . . . . . . . . . . . .  . . . . . 500 mW
Lead Temp. (TL) (Soldering, 10 sec.) . . . . . . . .  . .  235
Case Temp. (Tc) . . . . . . . . . . . . . . . . . . . . .  . 0 to 85
ESD rating (Rzap = 1.5k, Czap = 120 pF) . . . . . .  4000V
Differential Input Voltage . . . . . . . . . . . . . .  -5.5V to 16V
Differential Output Voltage . . . . . . . . . . . . . . .  0V to 16V


Description

  The DM9008 Ethernet controller is a highly integrated design that provides all Medial Access Control (MAC) and Encode-Decode (ENDEC) functions in accordance with the IEEE 802.3 standard. Network interfaces include 10BASE5 or 10BASE2 Ethernet via the AUI port and 10BASE-T via the Twisted-pair. The DM9008 Ethernet controller can interface directly to the PC-AT ISA bus without any external device. The interface to PC-AT ISA bus is fully compatible with NE2000 Ethernet adapter cards, so all software programs designed for NE2000 can run on the DM9008 card without any modification.Microsoft's Plug and Play and the jumperless software configuration function are both supported. The capability of the PnP and Non-PnP mode auto-switch function allows users to configure network card. No jumpers or switches are needed to set when using either the PC or PnP function. The integrated 8Kx16 SRAM and 10BASE-T transceiver make DM9008 more cost-effective.
