DM74LS240

Features:

 3-STATE outputs drive bus lines directly
 PNP inputs reduce DC loading on bus lines
 Hysteresis at data inputs improves noise margins
 Typical IOL (sink current)24 mA
 Typical IOH (source current) -15 mA
 Typical propagation delay times
   Inverting       10.5 ns
   Noninverting    12 ns
 Typical enable/disable time 18 ns
 Typical power dissipation (enabled)
   Inverting        130 mW
   Noninverting  135 mW

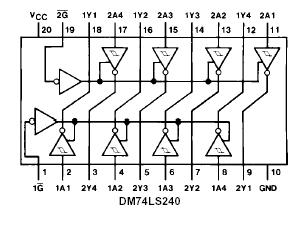

Pinout




Specifications

Supply Voltage                                                                7V
Input Voltage                                                                  7V
Operating Free Air Temperature Range         0°C to +70°C
Storage Temperature Range                    -65°C to +150°C


Description

   These DM74LS240 buffers/line drivers are designed to improve both the performance and PC board density of 3-STATE buffers/drivers employed as memory-address drivers, clock drivers, and bus-oriented transmitters/receivers. Featuring 400 mV of hysteresis at each low current PNP data line input, DM74LS240 provide improved noise rejection and high fanout outputs and can be used to drive terminated lines down to 133W.
