Features:

* Permits multiplexing from N lines to 1 line
* Performs at parallel-to-serial conversion
* Strobe (enable) line provided for cascading (N lines to
   n lines)
* High fan-out, low impedance, totem pole outputs
* Typical average propagation delay times
   From data 14 ns
   From strobe 19 ns
   From select 22 ns
* Typical power dissipation 31 mW
* Alternate Military/Aerospace device (54LS153) is available.
   Contact a National Semiconductor Sales Office/
Distributor for specifications.


Pinout

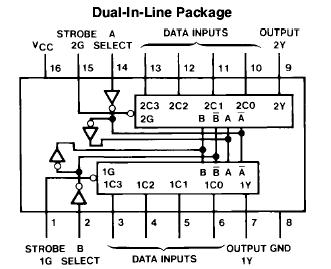

Connection Diagram



Specifications

Supply Voltage ....................................................................................7V
Input Voltage ......................................................................................7V
Operating Free Air Temperature Range
   DM54LS and 54LS ......................................................-55 to +125
   DM74LS .............................................................................0 to +70
Storage Temperature Range .........................................-65 to +150


Description

Each of these DM74LS153 data selectors/multiplexers contains inverters and drivers to supply fully complementary, on-chip, binary decoding data selection to the AND-OR-invert gates. Separate strobe inputs are provided for each of the two four-line sections.
