Product Details

Description



Features:

* Alternate Military/Aerospace device (54LS03) is available.
   Contact a National Semiconductor Sales Office/
   Distributor for specifications.


Pinout

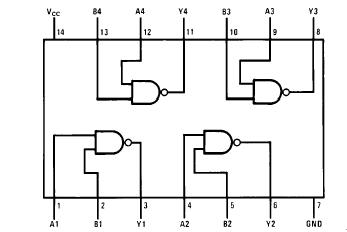

Connection Diagram


Specifications

Supply Voltage ........................................................................................7V
Input Voltage ..........................................................................................7V
Output Voltage .......................................................................................7V
Operating Free Air Temperature Range
   DM54LS and 54LS ..........................................................-55 to a125
   DM74LS .................................................................................0 to a70
Storage Temperature Range .............................................-65 to a150


Description

This DM74LS03 contains four independent gates each of which performs the logic NAND function. The open-collector outputs require external pull-up resistors for proper logical operation.
