Product Details

Description

Features:

· Switching specifications at 50 pF
· Switching specifications guaranteed over full
temperature and VCC range
· Advanced oxide-isolated, ion-implanted Schottky TTL process
· Functionally and pin for pin compatible with Schottky,
low power Schottky, and advanced low power Schottky
TTL counterpart
· Improved AC performance over Schottky, low power
Schottky, and advanced low power Schottky counterparts

Pinout

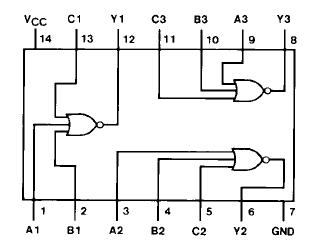

Connection Diagram

Specifications

Supply Voltage........................................................... 7V
Input Voltage .............................................................7V
Operating Free Air Temperature Range ....0°C to +70°C
Storage Temperature Range............... -65°C to +150°C
Typical qJA
N Package ............................................................84.0°C
Note 1: The "Absolute Maximum Ratings" are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The "Recommended Operating Conditions" table will define the conditions
for actual device operation.

Description

This device DM74AS27M contains three independent 3-input gates, each of which performs the logic NOR function.
