DM74ALS74AM

Mounting Style : SMD/SMT
Supply Voltage - Max : 5.5 V
Number of Circuits : 2
Input Type : Single-Ended
Packaging : Tube
Logic Family : 74ALS
Polarity : Inverting/Non-Inverting
Output Type : Differential
Propagation Delay Time : 18 ns
High Level Output Current : - 0.4 mA
Low Level Output Current : 8 mA
Maximum Operating Temperature : + 70 C
Package / Case : SOIC-14
Logic Type : D-Type Edge Triggered Flip-Flop


Features:

·  Switching specifications at 50 pF
·  Switching specifications guaranteed over full temperature and VCC range
·  Advanced oxide-isolated, ion-implanted Schottky TTL process
·  Functionally and pin-for-pin compatible with Schottky and LS TTL counterpart
·  Improved AC performance over LS74 at approximately half the power

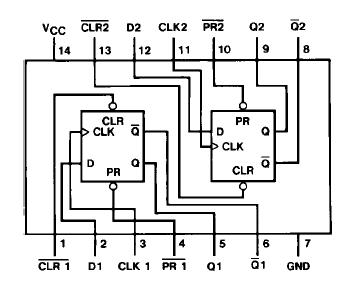

Pinout




Specifications

Supply Voltage........................................................... 7V
Input Voltage .............................................................7V
Operating Free Air Temperature Range.... 0°C to +70°C
Storage Temperature Range ...............-65°C to +150°C
Typical qJA
N Package ......................................................87.0°C/W
M Package ....................................................117.0°C/W
Note 2: The "Absolute Maximum Ratings" are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The "Recommended Operating Conditions" table will define the conditions
for actual device operation.


Description

The DM74ALS74A contains two independent positive edge-triggered flip-flops. Each flip-flop of DM74ALS74AM has individual D,\ clock, clear and preset inputs, and also complementary Q and Q outputs.

Information at input D is transferred to the Q output on the positive going edge of the clock pulse. Clock triggering occurs at a voltage level of the clock pulse and is not directly related to the transition time of the positive going pulse. When the clock input is at either the HIGH or LOW level, the D input signal has no effect.

Asynchronous preset and clear inputs will set or clear Q output respectively upon the application of low level signal.

Parameters:

Technical/Catalog Information	DM74ALS74AM
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Mounting Type	Surface Mount
Package / Case	14-SOIC
Function	Set and Reset
Number of Bits per Element	2
Number of Elements	1 - Single
Current - Output High, Low	400A, 8mA
Output Type	Differential
Trigger Type	Positive Edge
Type	D-Type
Packaging	Tube
Operating Temperature	0°C ~ 70°C
Delay Time - Propagation	5ns
Frequency - Clock	34MHz
Voltage - Supply	4.5 V ~ 5.5 V
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	DM74ALS74AM DM74ALS74AM
