DM74ALS540ASJ

Logic Type: Inverter, Buffer
Number of Circuits: 1
Mounting Type: Surface Mount
Voltage - Supply: 4.5 V ~ 5.5 V
Logic Level - High: 2V
Features: 3-State
Logic Level - Low: 0.7V
Number of Inputs: 8
Current - Quiescent (Max): -
Operating Temperature: 0°C ~ 70°C
Package / Case: 20-SOIC (0.209", 5.30mm Width)
Series: 74ALS
Current - Output High, Low: 15mA, 24mA
Packaging: Tube
Max Propagation Delay @ V, Max CL: 12ns @ 4.5V ~ 5.5V, 50pF
Manufacturer: Fairchild Semiconductor
Supplier Device Package: 20-SOP


Features:

·  Advanced oxide-isolated, ion-implanted Schottky TTL process
·  Switching performance is guaranteed over full temperature
  and VCC supply range
·  Data flow-thru pinout (All inputs on opposite side from outputs)
· P-N-P inputs reduce DC loading

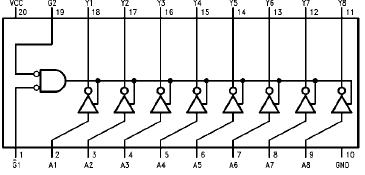

Pinout




Specifications

Supply Voltage ............................................................7V
Input Voltage ..............................................................7V
Voltage Applied to a
Disabled 3-STATE Output......................................... 5.5V
Operating Free-Air Temperature Range .....0°C to +70°C
Storage Temperature Range ................-65°C to +150°C
Typical qJA
N Package .......................................................58.5°C/W
M Package....................................................... 77.5°C/W
Note 1: The "Absolute Maximum Ratings" are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The "Recommended Operating Conditions" table will define the conditions
for actual device operation.


Description

This octal buffer and line driver DM74ALS540ASJ is designed to have the performance of the DM74ALS240A series and, at the same time, offer a pinout with inputs and outputs on opposite sides of the package. This arrangement greatly enhances printed circuit board layout. The 3-STATE control gate is a 2-input NOR such that if either G1 or G2 is HIGH, all eight outputs of DM74ALS540ASJ  are in the high impedance state.

Parameters:

Technical/Catalog Information	DM74ALS540ASJ
Vendor	Fairchild Optoelectronics Group
Category	Integrated Circuits (ICs)
Logic Type	Line Driver, Inverting
Package / Case	20-SOP
Packaging	Tube
Mounting Type	Surface Mount
Number of Bits per Element	8
Number of Elements	1 - Single
Operating Temperature	0°C ~ 70°C
Voltage - Supply	4.5 V ~ 5.5 V
Current - Output High, Low	15mA, 24mA
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	DM74ALS540ASJ DM74ALS540ASJ
