DM74ALS5245WM

Number of Channels per Chip : 8
Output Type : 3-State
Maximum Operating Temperature : + 70 C
Packaging : Tube
Supply Voltage - Max : 5.5 V
Low Level Output Current : 24 mA
Propagation Delay Time : 10 ns
Supply Voltage - Min : 4.5 V
Logic Type : Bipolar
Logic Family : 74ALS
Input Level : TTL
Output Level : TTL
High Level Output Current : - 15 mA
Package / Case : SOIC-20


Features:

·  Input Hysteresis
·  Low output noise generation
·  High input noise immunity
·  Advanced oxide-isolated, ion implanted Schottky TTL process
·  Switching specification guaranteed over the full temperature and VCC range
·  PNP inputs to reduce input loading

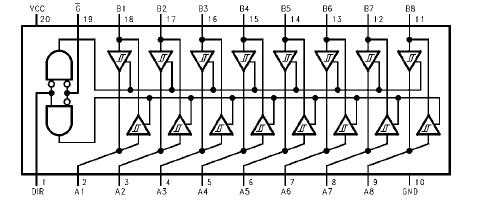

Pinout




Specifications

Supply Voltage ...............................................................7V
Input Voltage
Control Inputs................................................................ 7V
I/O Ports...................................................................... 5.5V
Operating Free-Air Temperature Range .........0°C to +70°C
Storage Temperature Range ....................-65°C to +150°C
Typical qJA
N Package ............................................................56.0°C/W
M Package ............................................................74.0°C/W
Note 1: The "Absolute Maximum Ratings" are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristic tables are not guaranteed at the absolute maximum ratings.
The "Recommended Operating Conditions" table will define the conditions
for actual device operation.


Description

This DM74ALS5245WM octal bus transceiver is designed for asynchronous two-way communication between data buses. The inputs include hysteresis which provides improved noise rejection. Data is transmitted either from the A bus to the B bus or from the B bus to the A bus depending on the logic level of the direction control (DIR) input. The DM74ALS5245WM device can be disabled via the enable input (G) which causes the outputs to enter the high impedance mode so the buses are effectively isolated.
