DM74ALS32M

Mounting Type: Surface Mount
Number of Inputs: 2
Features: -
Logic Type: OR Gate
Voltage - Supply: 4.5 V ~ 5.5 V
Logic Level - High: 2V
Logic Level - Low: 0.8V
Supplier Device Package: 14-SOIC
Package / Case: 14-SOIC (0.154", 3.90mm Width)
Number of Circuits: 4
Current - Quiescent (Max): -
Operating Temperature: 0°C ~ 70°C
Current - Output High, Low: 400µA, 8mA
Series: 74ALS
Max Propagation Delay @ V, Max CL: 14ns @ 4.5V ~ 5.5V, 50pF
Packaging: Tube
Manufacturer: Fairchild Semiconductor


Features:

·  Switching specifications at 50 pF
·  Switching specifications guaranteed over full temperature
  and VCC range
·  Advanced oxide-isolated, ion-implanted Schottky TTL process
·  Functionally and pin for pin compatible with Schottky
  and low power Schottky TTL counterpart
·  Improved AC performance over Schottky and low power
  Schottky counterparts

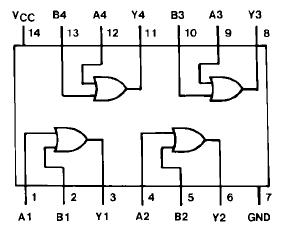

Pinout




Specifications

Supply Voltage.............................................................. 7V
Input Voltage................................................................ 7V
Operating Free Air Temperature Range .......0°C to +70°C
Storage Temperature Range ..................-65°C to +150°C
Typical qJA
N Package............................................................ 89°C/W
M Package ..........................................................120°C/W
Note 1: The "Absolute Maximum Ratings" are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The "Recommended Operating Conditions" table will define the conditions
for actual device operation.


Description

This DM74ALS32M contains four independent gates, each of which performs the logic OR function.


Parameters:

Technical/Catalog Information	DM74ALS32M
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Number of Circuits	4 - Quad
Package / Case	14-SOIC
Logic Type	OR Gate
Packaging	Tube
Mounting Type	Surface Mount
Number of Inputs	2
Current - Output High, Low	400A, 8mA
Supply Voltage	4.5 V ~ 5.5 V
Operating Temperature	0°C ~ 70°C
Voltage - Supply	4.5 V ~ 5.5 V
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	DM74ALS32M DM74ALS32M
