DM74ALS30ASJ

Number of Circuits: 1
Mounting Type: Surface Mount
Features: -
Logic Type: NAND Gate
Voltage - Supply: 4.5 V ~ 5.5 V
Logic Level - High: 2V
Logic Level - Low: 0.8V
Supplier Device Package: 14-SOIC
Package / Case: 14-SOIC (0.209", 5.30mm Width)
Number of Inputs: 8
Current - Quiescent (Max): -
Operating Temperature: 0°C ~ 70°C
Current - Output High, Low: 400µA, 8mA
Series: 74ALS
Packaging: Tube
Max Propagation Delay @ V, Max CL: 12ns @ 4.5V ~ 5.5V, 50pF
Manufacturer: Fairchild Semiconductor


Features:

·  Switching specifications at 50 pF
·  Switching specifications guaranteed over full temperature
   and VCC range
·  Advanced oxide-isolated, ion-implanted Schottky TTL process
·  Functionally and pin for pin compatible with Schottky
   and low power Schottky TTL counterpart
·  Improved AC performance over Schottky and low power
   Schottky counterparts

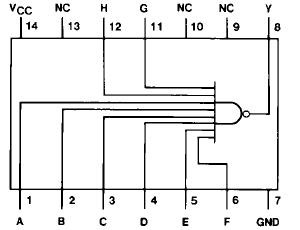

Pinout




Specifications

Supply Voltage ..............................................................7V
Input Voltage................................................................ 7V
Operating Free Air Temperature Range....... 0°C to +70°C
Storage Temperature Range ..................-65°C to +150°C
Typical qJA
N Package .........................................................86.5°C/W
M Package....................................................... 116.0°C/W
Note 1: The "Absolute Maximum Ratings" are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The "Recommended Operating Conditions" table will define the conditions
for actual device operation.


Description

This DM74ALS30ASJ contains a single gate, which performs the logic NAND function.


Parameters:

Technical/Catalog Information	DM74ALS30ASJ
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Number of Circuits	1 - Single
Package / Case	14-SOIC (5.3mm Width), 14-SOP, 14-SOIJ
Logic Type	NAND Gate
Packaging	Tube
Mounting Type	Surface Mount
Number of Inputs	8
Current - Output High, Low	400A, 8mA
Supply Voltage	4.5 V ~ 5.5 V
Operating Temperature	0°C ~ 70°C
Voltage - Supply	4.5 V ~ 5.5 V
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	DM74ALS30ASJ DM74ALS30ASJ
