DM74ALS245AWM

Number of Channels per Chip : 8
Output Type : 3-State
Maximum Operating Temperature : + 70 C
Packaging : Tube
Supply Voltage - Max : 5.5 V
Low Level Output Current : 24 mA
Propagation Delay Time : 10 ns
Supply Voltage - Min : 4.5 V
Logic Type : Bipolar
Logic Family : 74ALS
Input Level : TTL
Output Level : TTL
High Level Output Current : - 15 mA
Package / Case : SOIC-20


Features:

·  Advanced oxide-isolated, ion-implanted Schottky TTL process
·  Non-inverting logic output
·  Glitch free bus during power up and down
·  3-STATE outputs independently controlled on A and B buses
·  Low output impedance to drive terminated transmission
   lines to 133W
·  Switching response specified into 500W/50 pF
·  Specified to interface with CMOS at VOH = VCC - 2V
·  PNP inputs to reduce input loading
·  Switching specifications guaranteed over full temperature
   and VCC range

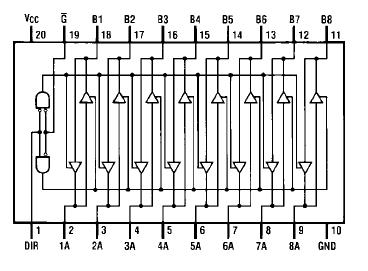

Pinout




Specifications

Supply Voltage........................................................ 7V
Input Voltage
Control Inputs......................................................... 7V
I/O Ports ...............................................................5.5V
Operating Free Air Temperature Range ..0°C to +70°C
Storage Temperature Range .............-65°C to +150°C
Typical qJA
N Package .....................................................53.0°C/W
M Package..................................................... 72.0°C/W
Note 1: The "Absolute Maximum Ratings" are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The "Recommended Operating Conditions" table will define the conditions
for actual device operation.


Description

This DM74ALS245AWM advanced low power Schottky device contains 8 pairs of 3-STATE logic elements configured as octal bus transceivers. These DM74ALS245AWM circuits are designed for use in memory, microprocessor systems and in asynchronous bidirectional data buses. Two way communication between buses is controlled by the (DIR) input. Data transmits either from the A bus to the B bus or from the B bus to the A bus. Both the driver and receiver outputs can be disabled via the (G) enable input which causes outputs to enter the high impedance mode so that the buses are effectively isolated.

Parameters:

Technical/Catalog Information	DM74ALS245AWM
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Logic Type	Transceiver, Non-Inverting
Package / Case	20-SOIC
Packaging	Tube
Mounting Type	Surface Mount
Number of Bits per Element	8
Number of Elements	1 - Single
Operating Temperature	0°C ~ 70°C
Voltage - Supply	4.5 V ~ 5.5 V
Current - Output High, Low	15mA, 24mA
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	DM74ALS245AWM DM74ALS245AWM
