DIT4192

Features: COMPLIANT WITH AES-3, IEC-60958, AND EIAJCP1201 INTERFACE STANDARDS SUPPORTS SAMPLING RATES UP TO 192kHz SUPPORTS MONO-MODE OPERATION ON-CHIP DIFFERENTIAL LINE DRIVER FLEXIBLE AUDIO SERIAL INTERFACE: -Master or Slave Mode Operation -Supports I2S, Left-Justified, and Right-JustifiedData F...

product image

DIT4192 Picture
See larger image
SeekIC No. : 004326577 Detail

DIT4192: Features: COMPLIANT WITH AES-3, IEC-60958, AND EIAJCP1201 INTERFACE STANDARDS SUPPORTS SAMPLING RATES UP TO 192kHz SUPPORTS MONO-MODE OPERATION ON-CHIP DIFFERENTIAL LINE DRIVER FLEXIBLE AUDIO SERIAL...

DIT4192 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DIT4192
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

COMPLIANT WITH AES-3, IEC-60958, AND EIAJCP1201 INTERFACE STANDARDS
SUPPORTS SAMPLING RATES UP TO 192kHz
SUPPORTS MONO-MODE OPERATION
ON-CHIP DIFFERENTIAL LINE DRIVER
FLEXIBLE AUDIO SERIAL INTERFACE:
   -Master or Slave Mode Operation
   -Supports I2S, Left-Justified, and Right-JustifiedData Formats
SOFTWARE MODE VIA SERIAL CONTROLINTERFACE:
    -Block Sized Buffer for Channel Status Data
    -Auto Increment Mode for Block Sized Write andRead Operations
HARDWARE MODE ALLOWS OPERATIONWITHOUT A MICROCONTROLLER
CRC CODE GENERATION FOR PROFESSIONALMODE
MASTER CLOCK RATE: 128fS, 256fS, 384fS ,or 512fS
+5V CORE SUPPLY (VDD)
+2.7V TO VDD LOGIC I/O SUPPLY (VIO)
PACKAGE: TSSOP-28


Application

DIGITAL MIXING CONSOLES
DIGITAL MICROPHONES
DIGITAL AUDIO WORKSTATIONS
BROADCAST STUDIO EQUIPMENT
EFFECTS PROCESSORS
SURROUND-SOUND DECODERS AND ENCODERS
A/V RECEIVERS
DVD, CD, DAT, AND MD PLAYERS
AUDIO TEST EQUIPMENT

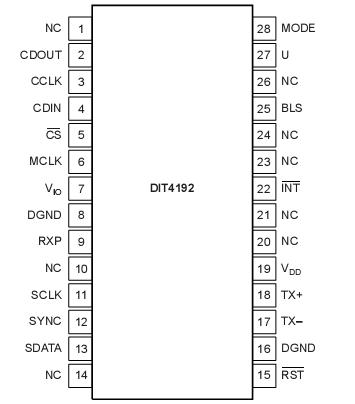

Pinout

Connection Diagram


Specifications

Power-Supply Voltage, VDD..............................................................+6.5V
                                     VIO..............................................................+6.5V
Input Current............................................................................... ±10mA
Digital Input Voltage ....................................................... 0.2V to +5.5V
Digital Output Voltage ............................................0.2V to (VDD+ 0.2V)
Power Dissipation.........................................................................300mW
Operating Temperature Range ...................................... 40 to + 85
Storage Temperature .....................................................55 to +125
Lead Temperature (soldering, 5s)................................................. +260
Package Temperature (IR re-flow, 10s)........................................ +235


Description

The DIT4192 is a digital audio transmitter designed for usein both professional and consumer audio applications. Trans-mit data rates up to 192kHz are supported. The DIT4192supports both software and hardware operation,which makesit suitable for applications with or without a microcontroller. Aflexible serial audio interface is provided, supporting stan-dard audio data formats and easy interfacing to audio DSPserial ports.
