Product Details

Description



Features:

Level Shift Capability: 125V For DI-502B
                                      200V For DI-500B
MOS and TTL Compatibility
Pin For Pin Replacements For Sprague UDN-6144A
Low Power Dissipation
Reliable Dielectric Isolation Process

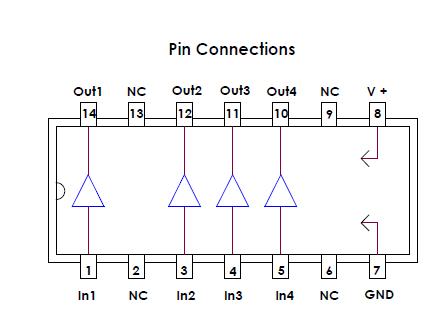

Pinout

Connection Diagram


Specifications

Characteristic
Symbol
 Notes
Limits
Units
Supply Voltage DI-500B
V +
V +
 Measured With Respect to GND
Measured With Respect to GND
200
125
V
V
DI-502B
Input Voltage
Vin
 Measured With Respect to GND
35
V
Output Voltage
Vout
 Measured With Respect to V + Terminal
90
V
Output Current
Iout

40
mA
Power Dissipation DI-500B
PD
 Derate at 6 mW/ 0C Above 25 Ambient
600
mW
DI-502B
PD
 Derate at 6 mW/ 0C Above 25 Ambient
600
mW
Storage Temperature
Ts

-55 to +125
Operating Temperature
To

0 to +70



Description

The DIONICS DI-500B and DI-502B circuits are designed for interfacing between MOS or TTL circuitry and gas discharge display panels. Each section of DI-500B and DI-502Bis made up of a switched constant current level shifter-capable of high voltage operation-and a pnp-npn driver transistor pair. The constant current operation of the level shifter stage results in low power dissipation. Input circuitry is suitable for open drain PMOS, CMOS, open-collector or standard TTL.
