DG9432

Features: Wide Operation Voltage (+2.7 to +12 V)Low Charge Injection - QINJ: 1 pCLow Power ConsumptionTTL/CMOS Logic Compatible Over The Full Operating Voltage rangeAvailable in MSOP-8 and SOT23-8ApplicationBattery Operated SystemsPortable Test EquipmentSample and Hold CircuitsCellular PhonesCommu...

product image

DG9432 Picture
See larger image
SeekIC No. : 004326352 Detail

DG9432: Features: Wide Operation Voltage (+2.7 to +12 V)Low Charge Injection - QINJ: 1 pCLow Power ConsumptionTTL/CMOS Logic Compatible Over The Full Operating Voltage rangeAvailable in MSOP-8 and SOT23-8Ap...

DG9432 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DG9432
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Wide Operation Voltage (+2.7 to +12 V)
Low Charge Injection - QINJ: 1 pC
Low Power Consumption
TTL/CMOS Logic Compatible Over The Full Operating Voltage range
Available in MSOP-8 and SOT23-8




Application

Battery Operated Systems
Portable Test Equipment
Sample and Hold Circuits
Cellular Phones
Communication Systems
Military Radio
PBX, PABX Guidance and Control Systems




Pinout

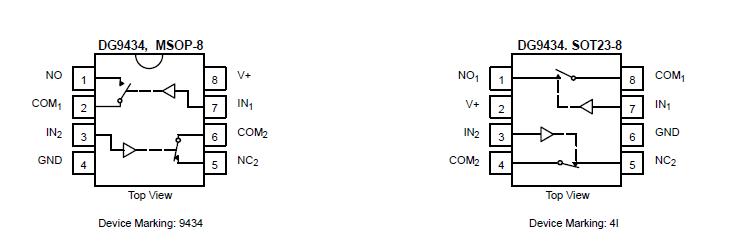

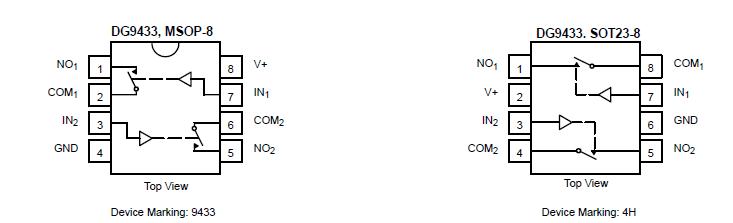

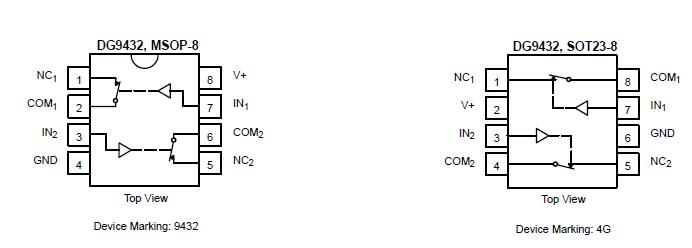

Connection Diagram Connection Diagram Connection Diagram




Specifications

Reference to GND
V+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . -0.3 to +13.5 V
IN, COM, NC, NOa . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . -0.3 to (V+ + 0.3 V)
Continuous Current (Any terminal) . . . . . . . . . . . . . . . .. . .. . . . . . . . . ±10 mA
Peak Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±20 mA
(Pulsed at 1ms, 10% duty cycle)
Storage Temperature (D Suffix) . . . . . . . . . . . . . . . . . . . . . . . . . . -65 to 150°C
Power Dissipation (Packages)b
MSOP-8c . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 320 mW
SOT23-8c . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 515 mW
Notes:
a. Signals on SX, DX, or INX exceeding V+ or V- will be clamped by internal diodes. Limit forward diode current to maximum current ratings.
b. All leads welded or soldered to PC Board.
c. Derate 6.5 mW/ above 75




Description

The DG9432/9433/9434 is a dual single-pole/single-throw monolithic CMOS analog switch designed for high performance switching of analog signals. Combining low power, high speed (tON: 25 ns, tOFF: 20 ns), the DG9432/9433/9434 is ideal for portable and battery powered applications requiring high performance and efficient use of board space.

The DG9432/9433/9434 is built on Vishay Siliconix's low voltage BCD-15 process. An epitaxial layer prevents latchup.
Break-before -make is guaranteed for DG9432/9433/9434.
