Position: Home  > All Categories> Integrated Circuits (ICs) > DG9414

DG9414

Features: Low Voltage Operation (+2.7 to +12 V)Low On-Resistance - rDS(on): 14 Low Power ConsumptionTTL CompatibleESD Protection >2000 V (Method 3015.7)Available in TSSOP-10 (aka MSOP-10)ApplicationBattery Operated SystemsPortable Test EquipmentSample and Hold CircuitsCellular PhonesCommunicati...

product image

DG9414 Picture
See larger image
SeekIC No. : 004326344 Detail

DG9414: Features: Low Voltage Operation (+2.7 to +12 V)Low On-Resistance - rDS(on): 14 Low Power ConsumptionTTL CompatibleESD Protection >2000 V (Method 3015.7)Available in TSSOP-10 (aka MSOP-10)Applicat...

DG9414 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DG9414
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Low Voltage Operation (+2.7 to +12 V)
Low On-Resistance - rDS(on): 14
Low Power Consumption
TTL Compatible
ESD Protection >2000 V (Method 3015.7)
Available in TSSOP-10 (aka MSOP-10)




Application

Battery Operated Systems
Portable Test Equipment
Sample and Hold Circuits
Cellular Phones
Communication Systems
Networking Equipment




Pinout

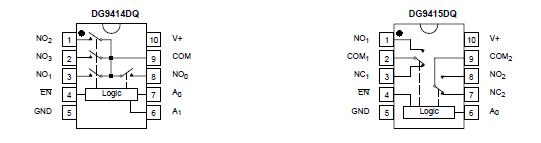

Connection Diagram




Specifications

Reference to GND
V+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 to +13 V
IN, COM, NC, NOa . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 to (V+ + 0.3 V)
Continuous Current (Any terminal) . . . . . . . . . . . . . . . . . . . . . . . . . .±20 mA
Peak Current . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . ±40 mA
(Pulsed at 1ms, 10% duty cycle)
ESD (Method 3015.7) . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . > 2000 V
Storage Temperature (D Suffix) . . . . . . . . . . . . . . .. . . . . . . . . -65 to 125°C
Notes:
a. Signals on SX, DX, or INX exceeding V+ or V- will be clamped by internal diodes. Limit forward diode current to maximum current ratings.
b. All leads welded or soldered to PC Board.




Description

The DG9414, a single 4 to 1 multiplexer, and the DG9415, a dual 2 x 1 multiplexer, are monolithic CMOS analog devices designed for high performance low voltage operation. Combining low power, high speed, low on- resistance and small physical size, the DG9414 and DG9415 are ideal for portable and battery powered applications requiring high performance and efficient use of board space.

Both the DG9414 and DG9415 are built on Vishay Siliconix's low voltage BCD-15 process. Minimum ESD protection, per Method 3015.7, is 2000 volts. An epitaxial layer prevents latchup. Break-before-make is guaranteed for DG9415.






Customers Who Bought This Item Also Bought

Margin,quality,low-cost products with low minimum orders. Secure your online payments with SeekIC Buyer Protection.
You may also be interested in :
Test Equipment
TOP853
TOP2005
Soldering, Desoldering, Rework Products
TGK-900M-B
TGK-900M-1.6D
Optoelectronics
SFH7770
TLP423J
Circuit Protection
A50QS75-4Y
F-17*77
Integrated Circuits (ICs)
TA8435H
1MB12-140
Capacitors
GRM188R71H103KA01D
GRM21BR71H104KA01L
View more
