DG883

Features: • This Circuit is Processed in Accordance to MIL-STD-883 and is Fully Conformant Under the Provisions of Paragraph 1.2.1.• ON-Resistance <35• Low Power Consumption (PD <35W)• Fast Switching Action - tON <150ns - tOFF <100ns• Low Charge Injection&...

product image

DG883 Picture
See larger image
SeekIC No. : 004326330 Detail

DG883: Features: • This Circuit is Processed in Accordance to MIL-STD-883 and is Fully Conformant Under the Provisions of Paragraph 1.2.1.• ON-Resistance <35• Low Power Consumption (PD...

DG883 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DG883
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• This Circuit is Processed in Accordance to MIL-STD-883 and is Fully Conformant Under the Provisions of Paragraph 1.2.1.
• ON-Resistance <35
• Low Power Consumption (PD <35W)
• Fast Switching Action
  - tON <150ns
  - tOFF <100ns
• Low Charge Injection
• DG401/883 Dual SPST; Replaces HI-5041/883
• DG403/883 Dual SPDT; Replaces DG190/883B,IH5043/883B, IH5151/883B, HI-5051/883, HI-5043/883B
• DG405/883 Dual DPST; Replaces DG184/883B,HI-5045/883, IH5145/883B
• TTL, CMOS Compatible
• Single or Split Supply Operation


Application

• Audio Switching
• Battery Operated Systems
• Data Acquisition
• Hi-Rel Systems
• Sample and Hold Circuits
• Communication Systems


Pinout

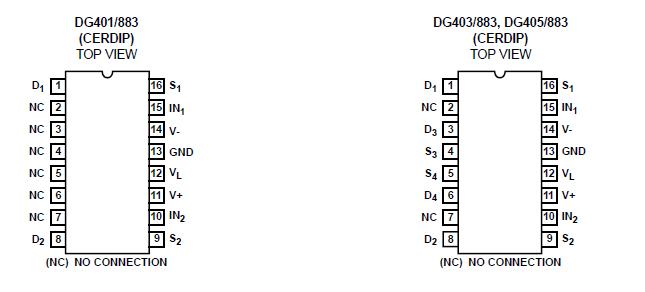

Connection Diagram


Specifications

V+ to V- . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . .+44.0V
GND to V- . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . . 25V
VL . . . . . . . . . . . . . . . . . . . . . . .. . . . (GND - 0.3V) to (VC+) +0.3V
Digital Inputs (Note 1), VS, VD. . . . (V-) -2V to (V+) + 2V or 30mA,
Whichever Occurs First
Continuous (Any Terminal) Current, (Note 1). . . . . . . . . . .±30mA
Peak Current, S or D (Note 1) . ..  . . . . . . . . .  . . . . . . . . .±100mA
(Pulsed 1ms, 10% Duty Cycle)
Storage Temperature Range (A Suffix). . . . . . . . . -65oC to +125
Lead Temperature (Soldering 10s) .. . . . . . . . . . . .. . . . . . . +300


Description

The DG401/883, DG403/883 and DG405/883 monolithic CMOS analog switches have TTL and CMOS compatible digital inputs.

These switches DG401/883, DG403/883 and DG405/883 feature low analog ON resistance (<35) and fast switch time (tON <150ns). Low charge injection simplifies sample and hold applications.
