DG403CJ+

Analog Switch ICs Dual High-Speed SPDT

product image

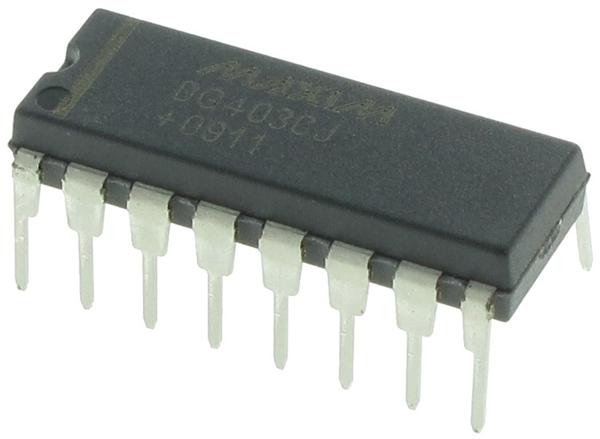

DG403CJ+ Picture
See larger image
SeekIC No. : 00617679 Detail

DG403CJ+: Analog Switch ICs Dual High-Speed SPDT

DG403CJ+ Data Sheet

floor Price/Ceiling Price

US $ 2.44~5.54 / Piece | Get Latest Price
Part Number:
DG403CJ+
Mfg:
Maxim Integrated Products
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • Unit Price
  • $5.54
  • $3.7
  • $2.68
  • $2.44
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Number of Switches : 2 Switch Configuration : SPDT
On Resistance (Max) : 45 Ohms Switch Voltage (Max) : 15 V
On Time (Max) : 150 ns Off Time (Max) : 100 ns
Operating Supply Voltage : +/- 4.5 V to +/- 20 V Maximum Operating Temperature : + 70 C
Mounting Style : Through Hole Package / Case : PDIP-16

Description

Number of Switches : 2
Switch Configuration : SPDT
On Time (Max) : 150 ns
Switch Voltage (Max) : 15 V
Mounting Style : Through Hole
Maximum Operating Temperature : + 70 C
On Resistance (Max) : 45 Ohms
Off Time (Max) : 100 ns
Operating Supply Voltage : +/- 4.5 V to +/- 20 V
Package / Case : PDIP-16


Parameters:

Technical/Catalog InformationDG403CJ+
VendorMaxim Integrated Products
CategoryIntegrated Circuits (ICs)
TypeSwitch
Voltage Supply SourceSingle, Dual Supply
Voltage - Supply, Single/Dual (±)10 V ~ 30 V, ±4.5 V ~ 20 V
Circuit2 x DPST (NC/NO)
On-State Resistance45 Ohm
Mounting TypeThrough Hole
Package / Case16-DIP (300 mil)
PackagingTube
Current - Supply-
Operating Temperature0°C ~ 70°C
FunctionSwitch
Drawing Number175; 21-0043; J; 16
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names DG403CJ+
DG403CJ+
