DG306B

Features:

±15-V Input Range
Fast Switching-tON: 110 ns
Low rDS(on): 30
Single Supply Operation
CMOS Logic Levels
Micropower: 30 nW




Application

Low Level Switching Circuits
Programmable Gain Amplifiers
Portable and Battery Powerd Systems

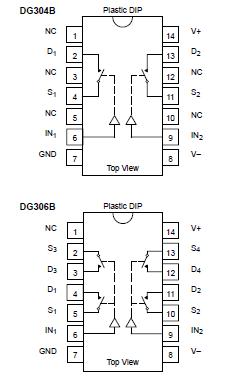

Pinout






Specifications

Voltages Referenced to V
V₊ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 V
GND . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 V
Digital Inputs^a, V_S, V_D . . . . . . . . . . . . . . . . . . . . . . . . (V) 2 V to (V₊) +2V or
30 mA, whichever occurs first
Current, Any Terminal . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 mA
Continuous Current, S or D
(Pulsed at 1 ms, 10% duty cycle max) . . . . . . . . . . . . . . . . . . . . . . . . 100 mA
Storage Temperature (AAA, AAK, Suffix) . . . . . .. . . . .. . . . .. . 65 to 150
Power Dissipation^b
14-Pin CerDIPc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .470 mW
Notes:
a. Signals on S^_X, D_X, or I_NX exceeding V₊ or V will be clamped by internal diodes. Limit forward diode current to maximum current ratings.
b. All leads welded or soldered to PC Board.
c. Derate 6 mW/ above 75




Description

The DG304B, DG306B and DG307B monolithic CMOS switches were designed for applications in communications,instrumentation and process control. This series( DG304B, DG306B and DG307B monolithic CMOS switches)is well suited for applications requiring fast switching and nearly flat on-resistance over the entire analog range.

Designed on the Vishay Siliconix PLUS-40 CMOS process to achieve low power consumption and excellent on/off switch performance, these switches ( DG304B, DG306B and DG307B monolithic CMOS switches)are ideal for battery powered applications, without sacrificing switching speed. Break-before-make switching action is guaranteed, and an epitaxial layer prevents latchup. Single supply operation (for positive switch voltages) is allowed by connecting the V rail to 0 V.
