DG2799

Features:

Low Voltage Operation (1.65 V to 4.3 V)
Low on-Resistance - rON: 0.25 @ 2.7 V
Fast Switching: tON = 28 ns tOFF = 17 ns
QFN-16 (3x3) Package
Latch-Up Current >300 mA (JESD78)




Application

Cellular Phones
Speaker Headset Switching
Audio and Video Signal Routing
PCMCIA Cards
Battery Operated Systems

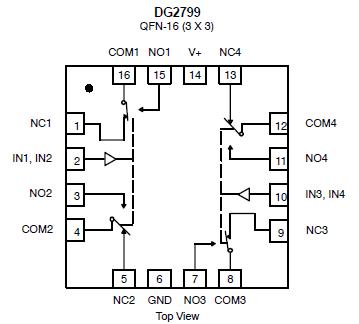

Pinout






Specifications

Reference to GND
V₊ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 to +5.0 V
IN, COM, NC, NOa . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 to (V₊ + 0.3 V)
Current (Any terminal except NO, NC or COM) . . .. . . . . . . . . . . . . . . 30 mA
Continuous Current (NO, NC, or COM) . . . . . . . . . . . . . . . . . . . . . ±300 mA
Peak Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±500 mA
(Pulsed at 1 ms, 10% duty cycle)
Storage Temperature (D Suffix) . . . . . . . . . . . .. . . . . . . . . . . -65 to 150°C
Package Solder Reflow Conditionsd
16-Pin QFN (3 x 3 mm) . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . 250°C
Power Dissipation (Packages)b
QFN-16c . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . 1385 mW
Notes:
a. Signals on NC, NO, or COM or IN exceeding V+ will be clamped by internal diodes. Limit forward diode current to maximum current ratings.
b. All leads welded or soldered to PC Board.
c. Derate 17.3 mW/C above 70C
d. Manual soldering with iron is not recommended for leadless components.The QFN is a leadless package. The end of the lead terminal is exposed copper (not plated) as a result of the singulation process in manufacturing.A solder fillet at the exposed copper lip cannot be guaranteed and is not required to ensure adequate bottom side solder interconnection.




Description

The DG2799 is a dual double-pole/double-throw monolithic CMOS analog switch designed for high performance switching of analog signals. Combining low power, high speed, low on-resistance and small physical size, the DG2799 is ideal for portable and battery powered applications requiring high performance and efficient use of board space.

The DG2799 is built on Vishay Siliconix's low voltage process. An epitaxial layer prevents latchup. Break-before-make is guaranteed.
