Product Details

Description



Features:

` PLUS-40 Process
` Make-Before-Break Operation
` Full Rail-to-Rail Analog Signal Range
` True TTL Compatibility
` Low rDS(on): 30


Application

· Programmable Gain Amplifiers
· Analog Multiplexing
· Servo Control Systems
· Programmable Filters
· Audio Switching


Pinout

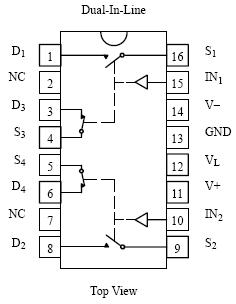

Connection Diagram


Specifications

V+ to V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 V
GND to V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 V
VL . . . . . . . . . . . . . . . . . . . . . . . . . . . ... . . . . . . (GND 0.3 V) to 44 V
Digital Inputsa VS, VD . . . . . . . . . . . . .... . . (V) 2 V to (V+ plus 2 V)
or 30 mA, whichever occurs first
Current (Any Terminal) Continuous . . . . . . . . . . . . ... . . . . . . . . 30 mA
Current, S or D (Pulsed 1 ms 10% duty) . . . . . . . . . . .. . . . . . . 100 mA
Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 to 125C
Power Dissipation (Package)b
16-Pin Plastic DIPc . . . . . . . . . . . . . . . . . . . . . . . . . . ..... . . . . . 450 mW



Description

The DG243 is a monolithic dual SPDT analog switch designed for general switching applications in communication, instrumentation, and process control systems. Featuring make-before-break action, the DG243 is used in closed loop systems to switch gain or bandwidth networks without opening the loop.

The DG243 is designed on the Siliconix PLUS-40 CMOS process to combine low power dissipation with a high breakdown voltage rating of 44 V. An epitaxial layer prevents latchup.

Each switch conducts equally well in both directions when on, and blocks up to 30 V peak-to-peak when off.
