Features:

Low Voltage Operation (1.8 to 5.5 V)
Low On-Resistance - r DS(on) : 4
Off-Isolation and Crosstalk: -55 dB @ 10 MHz
Fast Switch - 25 ns tON
Low Charge Injection - QINJ: 4.7 pC
Low Power Consumption - 4W




Application

Mixed Signal Routing
Portable and Battery Operated Systems
Low Voltage Data Acquisition
Modems
PCMCIA Cards




Pinout

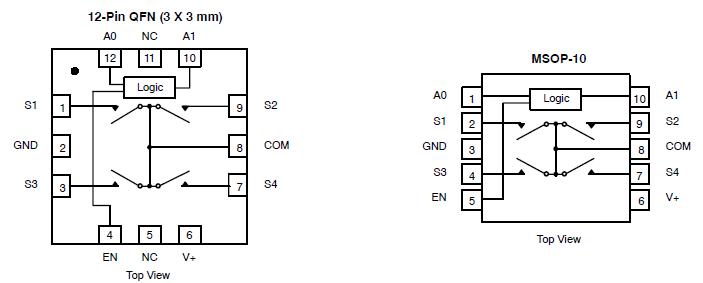

Connection Diagram




Specifications

Reference to GND
V+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . -0.3 to +6 V
AX, EN, SX, COMa . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . -0.3 to (V+ + 0.3 V)
Continuous Current (Any terminal) . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
Peak Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. ±100 mA
(Pulsed at 1ms, 10% duty cycle)
Power Dissipation (Package)b
QFN-12 (3 x 3 mm)c . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . 850 mW
MSOP-10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 320 mW
Storage Temperature (D Suffix) . . . . . . . . . . . . . . . . . . . . . . . . -65 to 150°C
Notes:
a. Signals on SX, DX, EN or AX exceeding V+ or V- will be clamped by internal diodes. Limit forward diode current to maximum current ratings.
b. All leads welded or soldered to PC Board.
c. Derate 4.0 mV/ above 70




Description

Single 4:1 Low Ron Multiplexers

The DG2034 is a low voltage, low rON, high bandwidth single 4 to 1 analog multiplexer designed for high performance switching of analog and video signals. Combining low power; fast switching; low on-resistance, flatness and matching; and small physical size, the DG2034 is ideal for portable and battery applications.

Built on Vishay Siliconix's low voltage CMOS process, the DG2034 has an epitaxial layer which prevents latchup. Break-before-make is guaranteed.
