Position: Home  > All Categories> Integrated Circuits (ICs) > DG2032

DG2032

Features: Single Supply (1.8 V to 5.5 V)Low On-Resistance - rON: 2.4 Crosstalk and Off Isolation: -81 dB @1 MHzQFN-12 (3 x 3 mm) PackageApplicationCellular PhonesSpeaker Headset SwitchingAudio and Video Signal RoutingPCMCIA CardsLow-Voltage Data AcquisitionATEPinoutSpecificationsV+ . . . . . . . ....

product image

DG2032 Picture
See larger image
SeekIC No. : 004326056 Detail

DG2032: Features: Single Supply (1.8 V to 5.5 V)Low On-Resistance - rON: 2.4 Crosstalk and Off Isolation: -81 dB @1 MHzQFN-12 (3 x 3 mm) PackageApplicationCellular PhonesSpeaker Headset SwitchingAudio and V...

DG2032 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DG2032
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Single Supply (1.8 V to 5.5 V)
Low On-Resistance - rON: 2.4
Crosstalk and Off Isolation: -81 dB @1 MHz
QFN-12 (3 x 3 mm) Package




Application

Cellular Phones
Speaker Headset Switching
Audio and Video Signal Routing
PCMCIA Cards
Low-Voltage Data Acquisition
ATE




Pinout

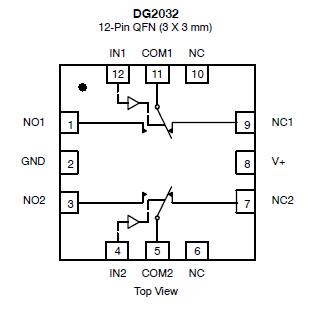

Connection Diagram




Specifications

V+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . -0.3 to +6 V
IN, COM, NC, NOa . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 to (V+ + 0.3 V)
Continuous Current (Any terminal) . . . . . . . . . . . . . . .. . . . . . . . . . . . ±50 mA
Peak Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . ±200 mA
(Pulsed at 1 ms, 10% duty cycle)
Storage Temperature (D Suffix) . . . . . . . . . . . . . . . . . . . . . . . . . -65 to 150°C
Power Dissipation (Packages)b
12-Pin QFN (3 x 3) c . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1295 mW
Package Solder Reflow Conditionsd
12-Pin QFN (3 x 3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240°C




Description

The DG2032 is a monolithic CMOS dual single-pole/double-throw (SPDT) analog switch. The DG2032 is specifically designed for low-voltage, high bandwidth applications.

The DG2032's on-resistance (3 @ 2.7 V), matching and flatness are guaranteed over the entire analog voltage range.Wide dynamic performance is achieved with better than 80 dB for both cross-talk and off-isolation at 1 MHz.




Customers Who Bought This Item Also Bought

Margin,quality,low-cost products with low minimum orders. Secure your online payments with SeekIC Buyer Protection.
You may also be interested in :
Industrial Controls, Meters
SGDM-15ADA
41AA1600E
Hardware, Fasteners, Accessories
MF-A02
LMS700KF07
Capacitors
GRM188R71H103KA01D
GRM21BR71H104KA01L
Power Supplies - Board Mount
HC-06
PM150RSA060-S81AH0G
Potentiometers, Variable Resistors
RV24YN
WXD4-23-3W
Optical Inspection Equipment
AA924
A21K4B
View more
