DG201HS

Features: Fast Switching-tON: 38 nsLow On-Resistance: 25 Low Leakage: 100 pALow Charge InjectionTTL/CMOS Logic CompatibleSingle Supply CompatibilityHigh Current Rating: 30 mAApplicationData AcquisitionHi-Rel SystemsSample-and-Hold CircuitsCommunication SystemsAutomatic Test EquipmentIntegrator Re...

product image

DG201HS Picture
See larger image
SeekIC No. : 004326048 Detail

DG201HS: Features: Fast Switching-tON: 38 nsLow On-Resistance: 25 Low Leakage: 100 pALow Charge InjectionTTL/CMOS Logic CompatibleSingle Supply CompatibilityHigh Current Rating: 30 mAApplicationData Acquisi...

DG201HS Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DG201HS
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Fast Switching-tON: 38 ns
Low On-Resistance: 25
Low Leakage: 100 pA
Low Charge Injection
TTL/CMOS Logic Compatible
Single Supply Compatibility
High Current Rating: 30 mA




Application

Data Acquisition
Hi-Rel Systems
Sample-and-Hold Circuits
Communication Systems
Automatic Test Equipment
Integrator Reset Circuits
Choppers
Gain Switching
Avionics

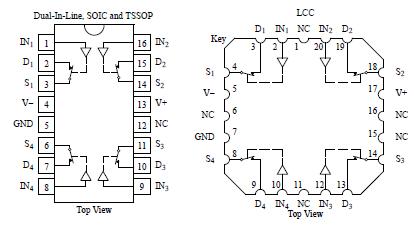

Pinout

Connection Diagram




Specifications

V+ to V . . . . . . . . . . . . .. . . . . . .. . . . .. . . . . . . . . . . . . . . . . 44 V
GND to V . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 V
Digital Inputsa VS, VD.. . . . . . .. . ... . . . .. (V) 4 V to (V+) +4 V
or30 mA, whichever occurs first
Continuous Current (Any Terminal) . . . . . .. . . . . . . . . . . . . 30 mA
Current, S or D (Pulsed 1 ms, 10% duty cycle) .. . . . . . . . . 100 mA
Storage Temperature (A Suffix) .. . . . . .. . . . . . .. . . . 65 to 150
(D Suffix) . . .. . . . . . .. . . . . . . . 65 to 125
Power Dissipation (Package)b
16-Pin Plastic DIPc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 470 mW
16-Pin CerDIPd . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . 900 mW
16-Pin Narrow Body SOIC and TSSOPe .. . . . . . . . . . . . . . . 600 mW
LCC-20d . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 900 mW
Notes:
a. Signals on SX, DX, or INX exceeding V+ or V will be clamped by internal diodes. Limit forward diode current to maximum current ratings.
b. All leads welded or soldered to PC board.
c. Derate 6 mW/ above 75.
d. Derate 12 mW/ above 75.
e. Derate 7.6 mW/ above 75.




Description

Hi-Speed Quad SPST CMOS Analog Switch

The DG201HS is an improved monolithic device containing four independent analog switches. DG201HS   is designed to provide high speed, low error switching of analog signals. Combining low on-resistance (25 ) with high speed (tON: 38 ns), the DG201HS is ideally suited for high speed data acquisition requirements.

To achieve high voltage ratings and superior switching performance, the DG201HS is built on a proprietary high-voltage silicon-gate process. An epitaxial layer prevents latchup.
