Features:

`Low Voltage Operation (1.8 V to 5.5 V)
`Low On Resistance
rDS(on) : 6 @ 2.7 V
`Low Voltage Logic Compatible
DG2019: VINH = 1 V
`High Bandwidth: 150 MHz
`QFN-16 Package




Application

Cellular Phones
Audio and Video Signal Routing
PCMCIA Cards
Battery Operated Systems
Portable Instrumentation




Pinout

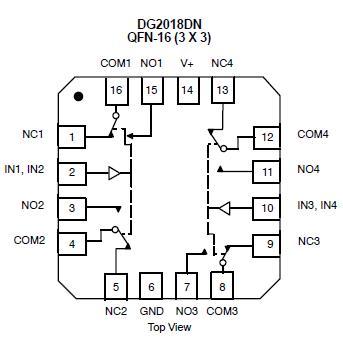

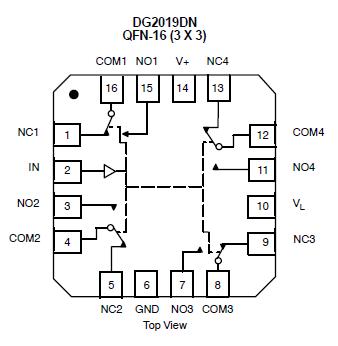

Connection Diagram Connection Diagram




Specifications

Reference to GND
V+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . -0.3 to +6 V
IN, COM, NC, NO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 to (V+ + 0.3 V)
Continuous Current (Any terminal) . . . . . . . . . . . . . . . . . . . . . . . . . . .±50 mA
Peak Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . ±100 mA
(Pulsed at 1 ms, 10% duty cycle)
Storage Temperature (D Suffix) . . . . . . . . . . . . .. . . . . . . . . . . . -65 to 150°C
Power Dissipation (Packages)b
QFN-16 (3 x 3 mm)c . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 850 mW
Notes:
a. Signals on NC, NO, or COM or IN exceeding V+ will be clamped by internal diodes. Limit forward diode current to maximum current ratings.
b. All leads welded or soldered to PC Board.
c. Derate 4.0 mW/ above 70




Description

Low Voltage, Dual DPDT and Quad SPDT Analog Switches

The DG2018 and DG2019 are low voltage, single supply analog switches. The DG2018 is a dual double-pole/double-throw (DPDT) with two control inputs that each controls a pair of single-pole/double-throw (SPDT). The DG2019 uses one control pin to operate four independent SPDT switches.

When operated on a +3-V supply, the DG2018's control pins are compatible with 1.8-V digital logic. The DG2019 has an available feature of a VL pin that allows a 1.0-V threshold for the control pin when VL is powered with 1.5 V.
