Features:

• Constant ON-Resistance for Signals to ±10V (DG182,DG185, DG188, DG191), to ±7.5V (All Devices)
• ±15V Power Supplies
• <2nA Leakage from Signal Channel in Both ON and OFF States
• TTL, DTL, RTL Direct Drive Compatibility
• tON, tOFF <150ns, Break-Before-Make Action
• Cross-Talk and Open Switch Isolation >50dB at 10MHz (75 Load)




Pinout

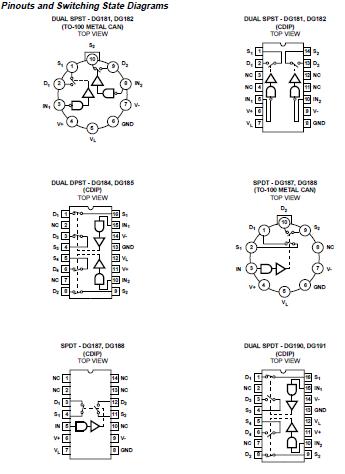

Connection Diagram




Specifications

V+ - V-. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36V
V+ - VD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33V
VD - V-. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33V
VD - VS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . ±22V
VL - V- . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36V
VL - VIN, VL - GND, VIN - GND . . . . . . . . . . . . . . . . . . . . . . . . . . . 8V
GND - V- . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27V
GND - VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . 20V
Current (S or D) (Note 3) . . . . . . . . . . . . . . . . . . .. . . . . . . .200mA
Storage Temperature . . . . . . . . . . . . . . . . . . . . . . -65 to +150
Lead Temperature (Soldering, 10s) . . . . . . . . . . . . . . . . . . . +300




Description

Hi-Speed Drvrs w/Dual SPDT JFET Switches DG191
