DG183

Features:

Constant On-Resistance Over Entire Analog Range
Low Leakage
Low Crosstalk
Break-Before-Make Switching
Rad Hardness

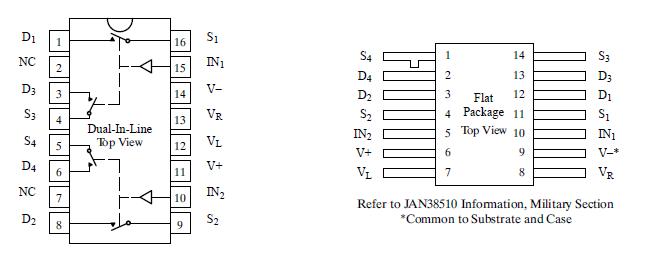

Pinout






Specifications

V₊ to V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 V
V₊ to V_D .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 V
V_D to V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 V
V_D to V_D . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±22 V
V_L to V . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 V
V_L to V_IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 V
V_L to V_R .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 V
V_IN to V_R . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 V
V_R to V . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 V
V_R to V_IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 V
Current (S or D) DG183 . . . . . . . . . . . . . . . . . . . 200 mA
Current (S or D) DG184, DG185 .. . . . . . . . . . . . . 30 mA
Current (All Other Pins) . . . . . . . . . . . . . . . . . . . . . 30 mA
Storage Temperature . . . . . . . . . . . . . . . . . 65 to 150
Power Dissipation^a
16-Pin Sidebraze^b . . . . . . . . . . . . . . . . . . . . . . . 900 mW
14-Pin Flat Pack^c .. . . . . . . . . . . . . . . .. . . . . . . . 900 mW
Notes:
a. All leads welded or soldered to PC Board.
b. Derate 12 mW/ above 75
c. Derate 10 mW/ above 75




Description

Hi-Speed Drvrs w/Dual SPST JFET Switches

The DG183/184/185 are precision dual double-pole,single-throw (DPST) analog switches designed to provide accurate switching of video and audio signals. This series is ideally suited for applications requiring a constant on-resistance over the entire analog range.

The major difference in DG183 is the on-resistance (DG183-10 􀀀, DG184-30􀀀, DG185-75 ) Reduced errors are achieved through low leakage current (ID(on) < 2 nA). Applications which benefit from the flat JFET on-resistance include audio switching, video switching, and data acquisition.
