DFB20T

Features: · High-speed switching use.· Reverse recovery time trr=0.15m s max (B, C, E, G). trr=0.3m s max (J, L).· Peak reverse voltage:VRM=100 to 1000V· Average Rectified current IO=2.0ASpecifications Parameter Symbol Conditions DFB20TB DFB20TC DFB20TE DFB20TG Unit ...

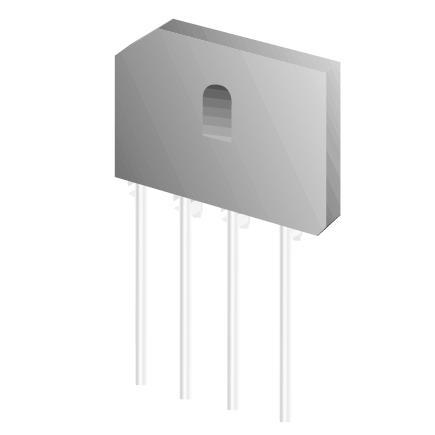

product image

DFB20T Picture
See larger image
SeekIC No. : 004325845 Detail

DFB20T: Features: · High-speed switching use.· Reverse recovery time trr=0.15m s max (B, C, E, G). trr=0.3m s max (J, L).· Peak reverse voltage:VRM=100 to 1000V· Average Rectified current IO=2.0ASpecificat...

DFB20T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DFB20T
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 · High-speed switching use.
 · Reverse recovery time  trr=0.15m s max (B, C, E, G).
                                          trr=0.3m s max (J, L).
 · Peak reverse voltage:VRM=100 to 1000V
 · Average Rectified current IO=2.0A


Specifications

Parameter
Symbol
Conditions
DFB20TB
DFB20TC
DFB20TE
DFB20TG
Unit
Peak Reverse Voltage
VRM
100
200
400
600
V
Average Recitified Current
IO
Ta=40C
2.0
A
Surge Forward Current
IFSM
50Hz sine wave, 1cycle
120
A
Junction Temperature
Tj
150
C
Storage Temperature
Tstg
40 to +150
C


Parameter
Symbol
Conditions
DFB20TJ
DFB20TL
Unit
Peak Reverse Voltage
VRM
800
1000
V
Average Recitified Current
IO
Ta=40C
2.0
A
Surge Forward Current
IFSM
50Hz sine wave, 1cycle
70
A
Junction Temperature
Tj
125
C
Storage Temperature
Tstg
-40 to +150
C
