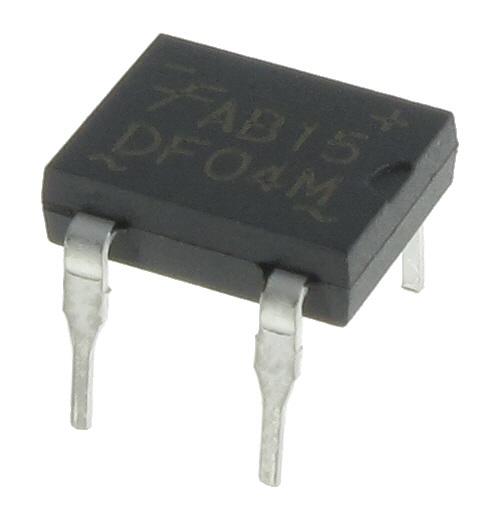

Product
: Single Phase Bridge
Maximum Operating Temperature
: + 150 C
Mounting Style
: Through Hole
Packaging
: Tube
Peak Reverse Voltage
: 400 V
Maximum RMS Reverse Voltage
: 280 V
Forward Continuous Current
: 1.5 A
Max Surge Current
: 50 A
Forward Voltage Drop
: 1.1 V
Maximum Reverse Leakage Current
: 5 uA
Power Dissipation
: 3.1 W
Length
: 8.51 mm
Width
: 6.48 mm
Height
: 3.3 mm
Package / Case
: PDIP-4
Features: Glass Passivated Die Construction
Diffused Junction
Low Forward Voltage Drop, High Current Capability
Surge Overload Rating to 50A Peak
Designed for Printed Circuit Board Applications
Plastic Material - UL Flammability Classification 94V-0
UL Listed Under Recognized Component Index, File Number E94661
Specifications
| DF04M |
Full Production |
RoHS Compliant |
$0.151 |
DIP |
4 |
RAIL |
TBD |
* Fairchild 1,000 piece Budgetary Pricing
|
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
| Part Number
| DF04M |
| Total Capacitance CT (pF) |
25 |
| Max Average Rectified Current IO (A) |
1 |
| Peak Repetitive Reverse Voltage VRRM (V) |
400 |
| Peak Forward Surge Current IFSM (A) |
50 |
| Forward Voltage Drop VF (V) |
1.1 |
| Max Reverse Current IR (µA) |
10 |
|
Characteristic
|
Symbol |
DF
005M |
DF
01M |
DF
02M |
DF
04M |
DF
06M |
DF
08M |
DF
10M |
Unit |
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage |
VRMM
VRWM
VR |
50 |
100 |
200 |
400 |
600 |
80 |
1000 |
V |
| RMS Reverse Voltage |
VRMS |
35 |
70 |
140 |
270 |
420 |
580 |
700 |
V |
|
Average Rectified Output Current
@ TA = 40°C |
IO |
1.0 |
A |
Non-Repetitive Peak Forward SurgeCurrent, 8.3 ms
single half-sine-wave superimposed on rated load(JEDEC method)
|
IFSM |
50 |
A |
|
Forward Voltage (per element)
@ IF = 1.0 A |
VFM |
1.1 |
V |
Peak Reverse Current @ TA = 25°C
at Rated DC Blocking Voltage (per element)
@ TA = 125°C |
IRM |
10
500 |
A |
| I2t Rating for Fusing (t<8.3ms) |
I2t |
10.4 |
A2s |
| Typical Junction Capacitance per element (Note 1) |
Cj |
25 |
pF |
| Typical Thermal Resistance, Junction to Ambient (Note 2) |
R JA |
40 |
°C/W |
| Operating and Storage Temperature Range |
Tj, TSTG |
-65 to +150 |
°C |
Parameters: | Technical/Catalog Information | DF04M |
| Vendor | Fairchild Semiconductor |
| Category | Discrete Semiconductor Products |
| Diode Type | Single Phase |
| Package / Case | 4-DIP |
| Packaging | Tube |
| Reverse Recovery Time (trr) | - |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Current - DC Forward (If) | 1.5A |
| Voltage - Peak Reverse (Max) | 400V |
| Mounting Type | Through Hole |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | DF04M
DF04M
|
DF04M Data Sheet
