Data Conversion IC Development Tools Demo Fixture

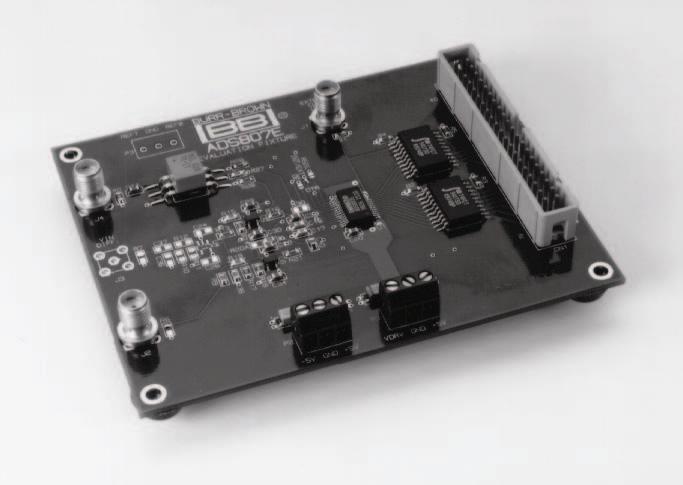

DEM-ADS807E: Data Conversion IC Development Tools Demo Fixture
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Product : | Evaluation Boards | Type : | ADC | ||
Tool Is For Evaluation Of : | ADS807E | Interface Type : | SMA |
Technical/Catalog Information | DEM-ADS807E |
Vendor | Texas Instruments |
Category | Programmers, Development Systems |
Number of ADC's | 1 |
Inputs per ADC | 1 Differential |
Input Range | 2 ~ 3 Vpp |
Data Interface | Parallel |
Number of Bits | 12 |
Sampling Rate (Per Second) | 53M |
Voltage Supply Source | Single |
Operating Temperature | -40°C ~ 85°C |
Supplied Contents | Board |
Utilized IC / Part | ADS807E |
Power (Typ) @ Conditions | 335mW @ 53MSPS |
Lead Free Status | Lead Free |
RoHS Status | RoHS Compliant |
Other Names | DEM ADS807E DEMADS807E 296 18423 ND 29618423ND 296-18423 |
