DDX-8229

Features: • 4 Channel DDX + 4 Channel Binary PWM, 24-Bit DDX® Processing• 100dB SNR and Dynamic Range• 32kHz to 192kHz Input Sample Rates• SACD/DSD Input (6 Channel)• 24-bit to 36-bit Internal Processing• Digital Gain/Attenuation +58dB to100dB in 0.5dB steps...

product image

DDX-8229 Picture
See larger image
SeekIC No. : 004325116 Detail

DDX-8229: Features: • 4 Channel DDX + 4 Channel Binary PWM, 24-Bit DDX® Processing• 100dB SNR and Dynamic Range• 32kHz to 192kHz Input Sample Rates• SACD/DSD Input (6 Channel)̶...

DDX-8229 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DDX-8229
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 4 Channel DDX + 4 Channel Binary PWM, 24-Bit DDX® Processing
• 100dB SNR and Dynamic Range
• 32kHz to 192kHz Input Sample Rates
• SACD/DSD Input (6 Channel)
• 24-bit to 36-bit Internal Processing
• Digital Gain/Attenuation +58dB to
100dB in 0.5dB steps
• Up to 10 Independent 32-bit User Programmable Biquads (EQ) per Channel
• I2C Control
• 8 Channel I2S Inputs
• 4 Channel I2S Outputs
• 3.3V Single Supply Operation
• Individual Channel, Master, and Channel Trim Gain/Attenuation
• Bass/Treble Tone Control
• Dual 8-Input Mix, Pre and Post EQ, per channel
• Dual Independent Programmable Limiters/Compressors
• Automode™
* 5-Band Graphic EQ
* 32 Preset EQ Curves
* All 5.1 Bass Management Configs
* 8 Preset Crossover Filters
* Auto Volume Controlled Loudness
* 5.1 to 2 Channel Downmix
* 3 Preset Volume Curves
* 2 Preset Anti-Clipping Modes
* Preset Nighttime Listening Mode
* Preset TV AGC
• Input and I2S Output Channel Mapping
• AM Noise Reduction and PWM Frequency Shifting Modes
• Soft Volume and Muting
• Auto Zero Detect and Invalid Input Detect Muting
• 4 Selectable DDX® Ternary or Binary PWM output + Variable PWM Speeds
• Internal Processing Loop-Through For Up To 40 Biquads / 2-Channels
• QSurround5.1*


Pinout

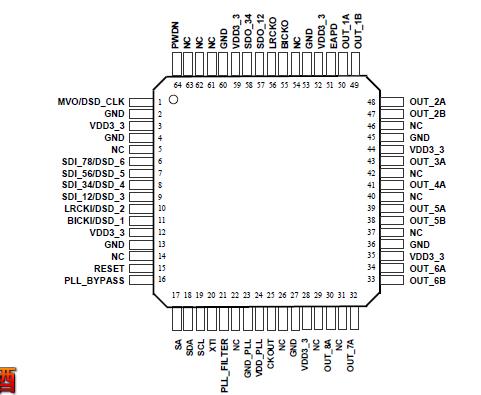

Connection Diagram


Specifications

Symbol Parameter Value Unit
VDD_3.3 3.3V Digital Power Supply -0.5 to 4 V
VDDA 3.3V Analog Power Supply -0.5 to 4 V
Vi Voltage on input pins -0.5 to (Vdd + 0.5) V
Vo Voltage on output pins -0.5 to (Vdd + 0.5) V
Vb Voltage on 5V tolerant inputs and bi-directional pins (Note 1) -0.5 to 5.5 V
Tstg Storage Temperature -40 to +150 °C
TA Ambient operating temperature -20 to +85 °C



Description

The DDX-8229 Controller provides a combination of standard PWM and DDX® outputs and a complete set of digital audio preamplifier functions.

The DDX-8229 is a single chip solution for digital audio processing and digital amplifier control, featuring output capabilities for DDX® (Direct Digital Amplification). In conjunction with a DDX® power device, it provides highquality, high-efficiency, all digital amplification. The device is extremely versatile allowing for input of nearly all digital formats including 6.1/7.1 channel, 192kHz/24- bit DVD-Audio, and SACD. In 5.1 applications the additional two channels can be used for line-out or headphone drive.

Also provided in the DDX-8229 are a full assortment of digital processing features. This includes up to 10 programmable 32-bit biquads (EQ) per channel, bass/treble tone control, and dual 8-input mixing blocks per channel. Automode™ technology enables a timeto- market advantage by substantially reducing the amount of software development needed for certain functions. This includes all possible 5.1 bass management configurations with simple large, small, and off control settings. New advanced AM radio mode solves one of the most common concerns using switching power amplifiers.


The DDX-8229 is a 4th generation DDX®/Binary PWM controller and is uniquely suited for the most demanding applications, providing an audiophile experience without parallel.
