DD02-999LF: RF Detector .65-3.0GHz IL .2 dB Directivity 23dB typ

DD02-999LF Data Sheet

US $ .29~.43 / Piece | Get Latest Price

Part Number:: DD02-999LF
Mfg:: Skyworks Solutions, Inc.
Supply Ability:: 5000

Price Break

Qty
0~1
1~50
50~100
100~500

Unit Price
$.43
$.38
$.32
$.29

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Quick Details

Frequency Range :	650 MHz to 3 GHz	Maximum Operating Temperature :	+ 85 C
Minimum Operating Temperature :	- 40 C	Package / Case :	SC-88
Packaging :	Reel

Description

Maximum Diode Capacitance :
Configuration :
Maximum Operating Temperature : + 85 C
Minimum Operating Temperature : - 40 C
Packaging : Reel
Frequency Range : 650 MHz to 3 GHz
Package / Case : SC-88

Features:

Frequency coverage:650 MHz to 3.0 GHz
Typical insertion loss < 0.2 dB to 2.3 GHz
Typical directivity > 23 dB
Small outline SC-88 (6 Lead SC-70)
Built-in temperature compensating diode
Low cost for high-volume handset applications
Available lead (Pb)-free MSL-2 @ 250 °C per JEDEC J-STD-020

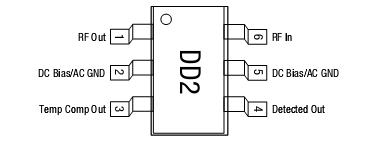

Pinout

Connection Diagram

Specifications

Parameter	Frequency	Min.	Typ.	Max.	Unit
Detected Voltage	0.81.2 GHz 1.82.0 GHz	60 130	80 160	105 190	mV mV
Insertion Loss	870920 MHz 1.71.8 GHz		0.10 0.20	0.20 0.30	dB dB
Input Return Loss	0.81.2 GHz 1.22.0 GHz		30 25	22 20	dB dB
Output Return Loss	0.81.2 GHz 1.22.0 GHz		30 25	22 20	dB dB
Directivity	0.81.2 GHz 1.82.0 GHz	17 16	20 13		dB dB
Schottky Noise Voltage (1 MHz Bandwidth)	RF Power Off		200		V
Schottky Diode DC Voltage	RF Power Off		510		mV
DC Offset Voltage	RF Power Off	-5	0	+5	mV
Video Resistance	RF Power Off		7,500

Frequency coverage: 650 MHz to 3.0 GHz
Typical insertion loss < 0.2 dB to 2.3 GHz
Typical directivity > 23 dB
Small outline SC-88 (6 Lead SC-70)
Built-in temperature compensating diode

Frequency coverage: 650 MHz to 3.0 GHz
Typical insertion loss < 0.2 dB to 2.3 GHz
Typical directivity > 23 dB
Small outline SC-88 (6 Lead SC-70)
Built-in temperature compensating diode

Description

The DD02-999 directional detector is an alternative to theDD01-999 with improved insertion loss and directivity with slightly lower sensitivity.It is designed for handset power monitor applica- tions from 800 MHz to 3 GHz.It is packaged in the small footprint,SC-88 (6 lead SC-70) package.The DD02-999 incorporates adirectional coupler and two GaAs Schottky diodes on a monolithic GaAs chip.By applying forward DC bias to both Schottky diodes,the DD02-999 may be conveniently temperature compensated.

The DD02-999 is characterized from 500 MHz to 3 GHz and generates a detected signal at 1.8 GHz of approximately 190 mV at 10 mW input power.Each Schottky diode is forward biased to approximately 5 A.
