Product Details

Description



Features:

Frequency Coverage: 650 MHz to 2.5 GHz
Small Outline SC-88 (6 Lead SC-70)
Package
Built-in Temperature Compensating Diode
Low Cost for High Volume Handset



Application

Tape and Reel Availability

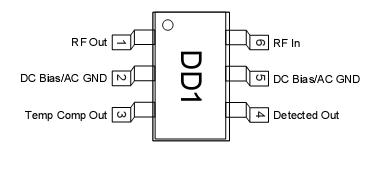

Pinout

Connection Diagram


Specifications

Parameter

Frequency

Min.

Typ.

Max.

Unit

Detected Voltage

0.81.2 GHz
1.82.0 GHz

80
150

120
200



mV
mV

Insertion Loss

870920 MHz
1.71.8 GHz





0.30
0.55

dB
dB

Input Return Loss

0.81.2 GHz
1.22.0 GHz





20
15

dB
dB

Output Return Loss

0.81.2 GHz
1.22.0 GHz





20
15

dB
dB

Directivity

0.82.0 GHz



10



dB

Schottky Noise Voltage (1 MHz Bandwidth)

RF Power Off





200

V

Schottky Diode DC Voltage

RF Power Off



480



mV

DC Offset Voltage

RF Power Off



10



mV

Video Resistance

RF Power Off



7,500








Description

The DD01-92 directional detector is an integrated directional coupler, Schottky diode combination designed for handset power monitor applications specified from  800 MHz to 2 GHz.It is packaged in the small footprint,SC-88 (6 lead SC-70) package.

The DD01-92 incorporates a directional coupler and two GaAs Schottky diodes on a monolithic GaAs chip. By applying forward  DC bias to both Schottky diodes, the DD01-92 may be conveniently temperature compensated. The DD01-92 is characterized from 650 MHz to 2.5 GHz and generates a detected signal at 1.8 GHz of approximately 200 mV at 10 mW input power. Each Schottky diode is forward biased to approximately 5 m A by applying 1 V through 100 kW resistors as shown in the test circuit.
