Product Details

Description

Features:

` Relative Accuracy: 1 LSB Max
` Differential Nonlinearity: 1 LSB Max
` 2-mA Full-Scale Current ±20%,
` with VREF = ±10 V
` 0.5 s Settling Time
` Midscale or Zero-Scale Reset
` Four Separate 4Q Multiplying Reference
` Inputs
` Reference Bandwidth: 10 MHz
` Reference Dynamics: -105 dB THD
` SPI™-Compatible 3-Wire Interface:
` 50 MHz
` Double Buffered Registers Enable
` Simultaneous Multichannel Change
` Internal Power On Reset
` Industry-standard Pin Configuration

Application

· Automatic Test Equipment
· Instrumentation
· Digitally Controlled Calibration

Pinout

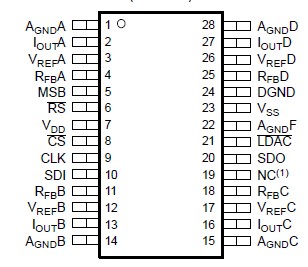

Connection Diagram

Specifications

		DAC8814	UNIT
V_DD to GND		-0.3 to +8	V
V_SS to GND		-0.3 to -7	V
V_REF to GND		-18 to +18	V
Logic inputs and output to GND		-0.3 to + 8	V
V(I_OUT) to GND		-0.3 to V_DD + 0.3	V
AGNDX to DGND		-0.3 to +0.3	V
Input current to any pin except supplies		±50	mA
Package power dissipation		(T_Jmax - T_A)/q_JA
Thermal resistance, qJA	28-Lead shrink surface-mount (RS-28)	100	°C/W
Maximum junction temperature (TJmax)		150	°C
Operating temperature range, Model A		-40 to +85	°C
Storage temperature range		-65 to + 150	°C
Lead temperature	RS-28 (Vapor phase 60s)	215	°C
Lead temperature	RS-28 (Infrared 15s)	220	°C

Description

The DAC8814 is a quad, 16-bit, current-output digi- tal-to-analog converter (DAC) designed to operate from a single +2.7 V to 5.0 V supply.

The applied external reference input voltage V_REF determines the full-scale output current. An internal feedback resistor (R_FB) provides temperature tracking for the full-scale output when combined with an external I-to-V precision amplifier.

A doubled buffered serial data interface offers high-speed, 3-wire, SPI and microcontroller compatible inputs using serial data in (SDI), clock (CLK), and a chip-select (CS). In addition, a serial data out pin (SDO) allows for daisy-chaining when multiple pack- ages are used. A common level-sensitive load DAC strobe (LDAC) input allows simultaneous update of all DAC outputs from previously loaded input registers. Additionally, an internal power on reset forces the output voltage to zero at system turn on. An MSB pin allows system reset assertion (RS) to force all registers to zero code when MSB = 0, or to half-scale code when MSB = 1.

The DAC8814 is available in an SSOP package.
