DAC8801

Features:

` 14-Bit Monotonic
` ±1 LSB
` ±0.5 LSB
` Low Noise: 12 nV/Hz
` Low Power: IDD = 2 A
` +2.7 V to +5.5 V Analog Power Supply
` 2 mA Full-Scale Current ±20% with VREF = 10 V
` 0.5 s Settling Time
` 4-Quadrant Multiplying Reference-Input clock (CLK), and chip select (CS).
` Reference Bandwidth: 10 MHz
` ±10 V Reference Input
` Reference Dynamics: -105 THD
` 3-Wire 50-MHz Serial Interface
` Tiny 8-Lead 3 x 3 mm SON and 3 x 5 mm MSOP Packages
` Industry-Standard Pin Configuration


Application

· Automatic Test Equipment
· Instrumentation
· Digitally Controlled Calibration
· Industrial Control PLCs

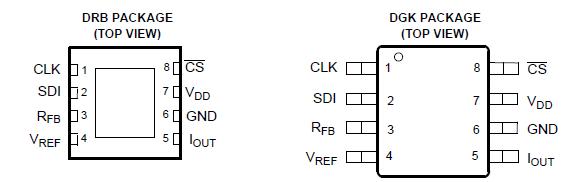

Pinout




Specifications

		DAC8801	UNITS
VDD to GND		-0.3 to +7	V
Digital Input voltage to GND		-0.3 to +VDD + 0.3	V
VOUT to GND		-0.3 to +VDD + 0.3	V
Operating temperature range		-40 to +105	°C
Storage temperature range		-65 to +150	°C
Junction temperature range (TJ max)		+125	°C
Power dissipation		(TJ max - TA) / RQJA	W
Thermal impedance, RQJA		+55	°C/W
Lead temperature, soldering	Vapor phase(60s)	+215	°C
Lead temperature, soldering	Infrared (15s)	+220	°C
ESD rating, HBM		1500	V
ESD rating, CDM		1000	V

(1) Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. xposure to absolute maximum conditions for extended periods may affect device reliability.


Description

The DAC8801 multiplying digital-to-analog converter is designed to operate from a single 2.7-V to 5.5-V supply.

The applied external reference input voltage V_REF determines the full-scale output current. An internal feedback resistor (R_FB) provides temperature tracking for the full-scale output when combined with an external I-to-V precision amplifier.
