Features:

 Micropower Operation: 250 A at 5 V AVDD
 Power-On Reset to Min-Scale
 16-Bit Monotonic
 Settling Time: 10 s to ±0.003% FSR
 16-Bit Parallel Interface
 On-Chip Output Buffer Amplifier With Rail-to-Rail Operation
 Hardware Reset to Min-Scale or Mid-Scale
 Double-Buffered Architecture
 Asynchronous LDAC Control
 Data Readback Support
 1.8 V Compatible Digital Interface:
   − DVDD = 1.8 V−5.5 V
 Wide Analog Supply Range:
   − AVDD = 2.7 V−5.5 V
 32-Lead 5 mm * 5 mm TQFP Package


Application

 Process Control
 Data Acquisition Systems
 Closed-Loop Servo Control
 PC Peripherals
 Portable Instrumentation


Pinout

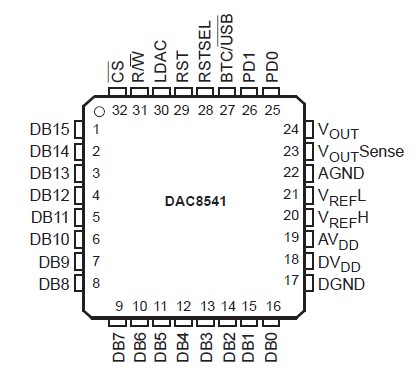

Connection Diagram


Specifications

AVDD to AGND . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . −0.3 V to 6 V
DVDD to DGND . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . −0.3 V to 6 V
Digital input voltage to DGND . . . . . . . . . . . . −0.3 V to DVDD + 0.3 V
VOUT to AGND . . . . . . . . . . . . . . . . . . . . . . . . −0.3 V to AVDD + 0.3 V
Operating temperature range . . . . . . . . . . . . . . . . . . −40°C to 85°C
Storage temperature range, Tstg . . . . . . . . . . . . .  . −65°C to 150°C
Junction temperature, TJ max . . . . . . . . . . . . . . . . . . . . . . . . .  150°C


Description

The DAC8541 is a low-power, single channel, 16-bit, voltage output DAC. Its on-chip precision output amplifier allows rail-to-rail voltage swing to be achieved at the output. The DAC8541 utilizes a 16-bit parallel interface and features additional powerdown function pins as well as hardware-enabled, asynchronous DAC updating and reset capability.

The DAC8541 requires an external reference voltage to set the output range of the DAC. The device incorporates a power-on-reset circuit that ensures that the DAC output powers up at min-scale and remains there until a valid write takes place to the device. In addition, the DAC8541 contains a power-down feature, accessed via two hardware pins, that when enabled reduces the current consumption of the device to 200 nA at 5 V.

The low power consumption of this device in normal operation makes it ideally suited for use in portable battery operated equipment applications. The power consumption is 1.2 mW at AVDD = 5 V reducing to 1 W in power-down mode.

The DAC8541 is available in a 32-lead TQFP package with an operating temperature range of −40°C to 85°C.
