DAC7744

Features: LOW POWER: 200mWUNIPOLAR OR BIPOLAR OPERATIONSINGLE-SUPPLY OUTPUT RANGE: +10VDUAL SUPPLY OUTPUT RANGE: ±10VSETTLING TIME: 10ms to 0.003%16-BIT MONOTONICITY: 40°C to +85°CPROGRAMMABLE RESET TO MID-SCALE OR ZERO-SCALEDATA READBACKDOUBLE-BUFFERED DATA INPUTSApplicationPROCESS CONTROLATE PIN...

product image

DAC7744 Picture
See larger image
SeekIC No. : 004323778 Detail

DAC7744: Features: LOW POWER: 200mWUNIPOLAR OR BIPOLAR OPERATIONSINGLE-SUPPLY OUTPUT RANGE: +10VDUAL SUPPLY OUTPUT RANGE: ±10VSETTLING TIME: 10ms to 0.003%16-BIT MONOTONICITY: 40°C to +85°CPROGRAMMABLE RESET...

DAC7744 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DAC7744
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 LOW POWER: 200mW
 UNIPOLAR OR BIPOLAR OPERATION
 SINGLE-SUPPLY OUTPUT RANGE: +10V
 DUAL SUPPLY OUTPUT RANGE: ±10V
 SETTLING TIME: 10ms to 0.003%
 16-BIT MONOTONICITY: 40°C to +85°C
 PROGRAMMABLE RESET TO MID-SCALE OR ZERO-SCALE
 DATA READBACK
 DOUBLE-BUFFERED DATA INPUTS


Application

 PROCESS CONTROL
 ATE PIN ELECTRONICS
 CLOSED-LOOP SERVO-CONTROL
 MOTOR CONTROL
 DATA ACQUISITION SYSTEMS
 DAC-PER-PIN PROGRAMMERS


Pinout

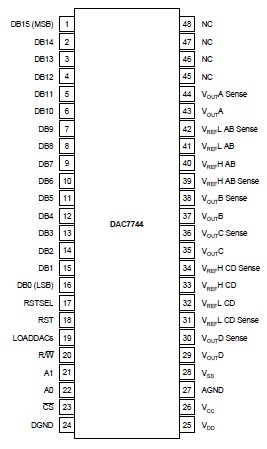

Connection Diagram


Specifications

VCC to VSS ........................................................................... 0.3V to +32V
VCC to AGND ...................................................................... 0.3V to +16V
VSS to AGND ...................................................................... +0.3V to 16V
AGND to DGND ................................................................. 0.3V to +0.3V
VREFH to AGND ..................................................................... 9V to +11V
VREFL to AGND ...................................................................... 11V to +9V
VDD to GND........................................................................... 0.3V to +6V
VREFH to VREFL ........................................................................ 1V to 22V
Digital Input Voltage to GND ................................... 0.3V to VDD + 0.3V
Digital Output Voltage to GND ................................. 0.3V to VDD + 0.3V
Maximum Junction Temperature ................................................... +150°C
Operating Temperature Range ........................................ 40°C to +85°C
Storage Temperature Range ......................................... 65°C to +150°C
Lead Temperature (soldering, 10s) ............................................... +300°C


Description

The DAC7744 is a 16-bit, quad voltage output digitalto- analog converter with guaranteed 16-bit monotonic performance over the specified temperature range. It accepts 16-bit parallel input data, has double-buffered DAC input logic (allowing simultaneous update of all DACs), and provides a readback mode of the internal input registers. Programmable asynchronous reset clears all registers to a mid-scale code of 8000H or to a zero-scale of 0000H. The DAC7744 operates from either a single +15V supply or from a +15V, 15V, and +5V supply.

Low power and small size per DAC make the DAC7744 ideal for automatic test equipment, DAC-per-pin programmers, data acquisition systems, and closed-loop servo-control. The DAC7744 is available in a 48- lead SSOP package, and offers guaranteed specifications over the 40°C to +85°C temperature range.
