DAC7654

Features: Low Glitch: 1nV-s (typ)Low Power: 18mWUnipolar or Bipolar OperationSettling Time: 12s to 0.003%16-Bit Linearity and Monotonicity:40°C to +85°CProgrammable Reset to Mid-Scale or Zero-ScaleDouble-Buffered Data InputsInternal Bandgap Voltage ReferencePower-On Reset3V to 5V Logic InterfaceAp...

product image

DAC7654 Picture
See larger image
SeekIC No. : 004323769 Detail

DAC7654: Features: Low Glitch: 1nV-s (typ)Low Power: 18mWUnipolar or Bipolar OperationSettling Time: 12s to 0.003%16-Bit Linearity and Monotonicity:40°C to +85°CProgrammable Reset to Mid-Scale or Zero-ScaleD...

DAC7654 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DAC7654
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Low Glitch: 1nV-s (typ)
 Low Power: 18mW
 Unipolar or Bipolar Operation
 Settling Time: 12s to 0.003%
 16-Bit Linearity and Monotonicity:40°C to +85°C
 Programmable Reset to Mid-Scale or Zero-Scale
 Double-Buffered Data Inputs
 Internal Bandgap Voltage Reference
 Power-On Reset
 3V to 5V Logic Interface


Application

 Process Control
 Closed-Loop Servo-Control
 Motor Control
 Data Acquisition Systems
 DAC-per-Pin Programmers


Pinout

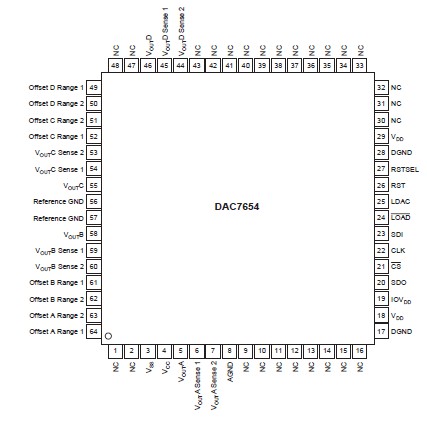

Connection Diagram


Specifications

DAC7654 UNIT
IOVDD, VCC and VDD to VSS −0.3 to 11 V
IOVDD, VCC and VDD to GND −0.3 to 5.5 V
Digital Input Voltage to GND −0.3 to VDD + 0.3 V
Digital Output Voltage to GND −0.3 to VDD + 0.3 V
ESD-CDM 200 V
Maximum Junction Temperature +150 °C
Operating Temperature Range −40 to +85 °C
Storage Temperature Range −65 to +125 °C
Lead Temperature (soldering, 10s) +300 °C



Description

The DAC7654 is a 16-bit, quad voltage output, digital-to-analog converter (DAC) with 16-bit monotonic performance over the specified temperature range. It accepts 24-bit serial input data, has double-buffered DAC input logic (allowing simultaneous update of all DACs), and provides a serial data output for daisy-chaining multiple DACs. Programmable asynchronous reset clears all registers to a mid-scale code of 8000h or to a zero-scale of 0000h. The DAC7654 can operate from a single +5V supply or from +5V and 5V supplies.

Low power and small size per DAC make the DAC7654 ideal for automatic test equipment, DAC-per-pin programmers, data acquisition systems, and closed-loop servo-control. The DAC7654 is available in an LQFP package and is specified for operation over the 40°C to +85°C temperature range.
