DAC7644

Features: LOW POWER: 10mWUNIPOLAR OR BIPOLAR OPERATIONSETTLING TIME: 10ms to 0.003%15-BIT LINEARITY AND MONOTONICITY:40°C to +85°CPROGRAMMABLE RESET TO MID-SCALE OR ZERO-SCALEDATA READBACKDOUBLE-BUFFERED DATA INPUTSApplicationPROCESS CONTROLCLOSED-LOOP SERVO-CONTROLMOTOR CONTROLDATA ACQUISITION SY...

product image

DAC7644 Picture
See larger image
SeekIC No. : 004323768 Detail

DAC7644: Features: LOW POWER: 10mWUNIPOLAR OR BIPOLAR OPERATIONSETTLING TIME: 10ms to 0.003%15-BIT LINEARITY AND MONOTONICITY:40°C to +85°CPROGRAMMABLE RESET TO MID-SCALE OR ZERO-SCALEDATA READBACKDOUBLE-BUF...

DAC7644 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DAC7644
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 LOW POWER: 10mW
 UNIPOLAR OR BIPOLAR OPERATION
 SETTLING TIME: 10ms to 0.003%
 15-BIT LINEARITY AND MONOTONICITY:40°C to +85°C
 PROGRAMMABLE RESET TO MID-SCALE OR ZERO-SCALE
 DATA READBACK
 DOUBLE-BUFFERED DATA INPUTS


Application

 PROCESS CONTROL
 CLOSED-LOOP SERVO-CONTROL
 MOTOR CONTROL
 DATA ACQUISITION SYSTEMS
 DAC-PER-PIN PROGRAMMERS


Pinout

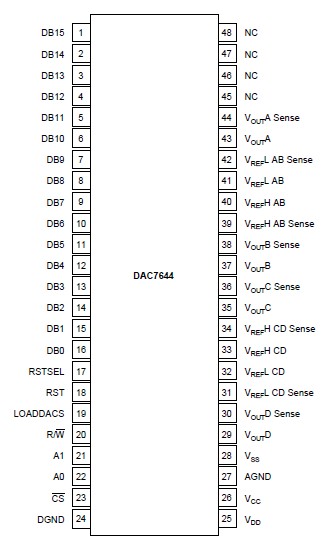

Connection Diagram


Specifications

VCC and VDD to VSS .............................................................. 0.3V to 11V
VCC and VDD to GND ........................................................... 0.3V to 5.5V
VREFL to VSS ............................................................. 0.3V to (VCC VSS)
VCC to VREFH ............................................................ 0.3V to (VCC VSS)
VREFH to VREFL ......................................................... 0.3V to (VCC VSS)
Digital Input Voltage to GND ................................... 0.3V to VDD + 0.3V
Digital Output Voltage to GND ................................. 0.3V to VDD + 0.3V
Maximum Junction Temperature ................................................... +150°C
Operating Temperature Range ........................................40°C to +85°C
Storage Temperature Range ......................................... 65°C to +125°C
Lead Temperature (soldering, 10s) ............................................... +300°C


Description

The DAC7644 is a 16-bit, quad voltage output digitalto- analog converter with guaranteed 15-bit monotonic performance over the specified temperature range. It accepts 16-bit parallel input data, has double-buffered DAC input logic (allowing simultaneous update of all DACs), and provides a readback mode of the internal input registers. Programmable asynchronous reset clears all registers to a mid-scale code of 8000H or to a zeroscale of 0000H. The DAC7644 can operate from a single +5V supply or from +5V and 5V supplies.

Low power and small size per DAC make the DAC7644 ideal for automatic test equipment, DAC-per-pin programmers, data acquisition systems, and closed-loop servo-control. The DAC7644 is available in a 48-lead SSOP package and offers guaranteed specifications over the 40°C to +85°C temperature range.
