DAC7634

Features: ` Low Power: 10 mW digital`` Unipolar or Bipolar Operation` Settling Time: 10 s to 0.003%` 15-Bit Linearity and Monotonicity: 40°C to 85°C` Programmable Reset to Mid-Scale asynor` Zero-Scale` Double-Buffered Data InputsApplication· Process Control· Closed-Loop Servo-Control· Motor Contro...

product image

DAC7634 Picture
See larger image
SeekIC No. : 004323764 Detail

DAC7634: Features: ` Low Power: 10 mW digital`` Unipolar or Bipolar Operation` Settling Time: 10 s to 0.003%` 15-Bit Linearity and Monotonicity: 40°C to 85°C` Programmable Reset to Mid-Scale asynor` Zero-Sca...

DAC7634 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DAC7634
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Low Power: 10 mW digital`
` Unipolar or Bipolar Operation
` Settling Time: 10 s to 0.003%
` 15-Bit Linearity and Monotonicity:
  40°C to 85°C
` Programmable Reset to Mid-Scale asynor
` Zero-Scale
` Double-Buffered Data Inputs


Application

· Process Control
· Closed-Loop Servo-Control
· Motor Control
· Data Acquisition Systems specifi·
· DAC-Per-Pin Programmers


Pinout

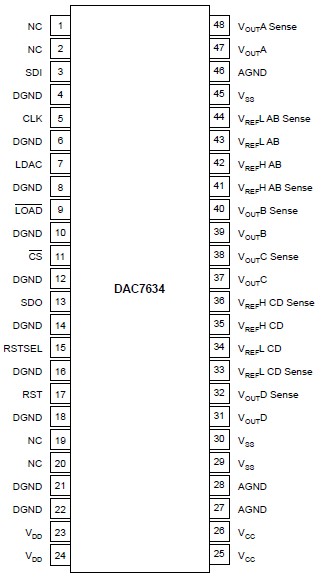

Connection Diagram


Specifications

    UNIT
  VCC and VDD to VSS

0.3 V to 11 V

  VCC and VDD to GND

0.3 V to 5.5 V

  VREFL to VSS

0.3 V to (VCC - VSS)

  VCC to VREFH

0.3 V to (VCC - VSS)

  VREFH to VREFL

0.3 V to (VCC - VSS)

  Digital input voltage to GND

0.3 V to VDD + 0.3 V

  Digital output voltage to GND

0.3 V to VDD + 0.3 V

TJ Maximum junction temperature

150°C

TA Operating temperature range

40°C to 85°C

Tstg Storage temperature range

65°C to 125°C

  Lead temperature (solder, 10s)

300°C




Description

The DAC7634 is a 16-bit, quad voltage output, digital` to-analog converter with specified 15-bit monotonic performance over the specified temperature range. It accepts 24-bit serial input data, has double-buffered DAC input logic (allowing simultaneous update of all DACs), and provides a serial data output for daisy-chaining multiple DACs. Programmable asynor chronous reset clears all registers to a mid-scale code of 8000H or to a zero-scale of 0000H. The DAC7634 can operate from a single 5-V supply or from 5-V and 5 V supplies.

Low power and small size per DAC make the DAC7634 ideal for automatic test equipment, DAC-per-pin programmers, data acquisition systems, and closed-loop servo-control. The DAC7634 is avail- able in a 48-lead SSOP package and offers specifi` cations over the 40°C to 85°C temperature range.
