Features:

LOW POWER: 2.5mW
 UNIPOLAR OR BIPOLAR OPERATION
SETTLING TIME: 10s to 0.003%
15-BIT LINEARITY AND MONOTONICITY: 40°C to +85°C
USER SELECTABLE RESET TO MID-SCALE OR ZERO-SCALE
SMALL SSOP-20 PACKAGE


Application

ATE PIN ELECTRONICS
PROCESS CONTROL
CLOSED-LOOP SERVO-CONTROL
 MOTOR CONTROL
DATA ACQUISITION SYSTEMS


Pinout

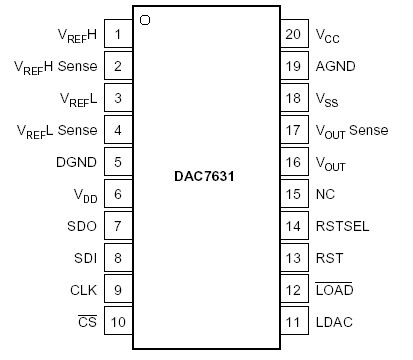

Connection Diagram


Specifications

VDD to VSS .......................................................................... 0.3V to +11V
VDD to GND ........................................................................ 0.3V to +5.5V
VREFL to VSS ............................................................... 0.3V to (VDD VSS)
VDD to VREFH .............................................................. 0.3V to (VDD VSS)
VREFH to VREFL ............................................................ 0.3V to (VDD VSS)
Digital Input Voltage to GND ...................................... 0.3V to VDD + 0.3V
Maximum Junction Temperature ..................................................... +150°C
Operating Temperature Range ......................................... 40°C to +85°C
Storage Temperature Range .......................................... 65°C to +150°C
Lead Temperature (soldering, 10s) ............................................... +300°C


Description

The DAC7631 is a serial input, 16-bit, voltage output Digital-to-Analog Converter (D/A) with guaranteed 15-bit monotonic performance over the 40°C to +85°C temperature range. An asynchronous reset clears all registers to either mid-scale (8000H) or zero-scale (0000H), selectable via the RESETSEL pin. The DAC7631 e can be powered from a single +5V supply or from dual +5V and 5V supplies.

Low power and small size makes the DAC7631 ideal for process control, data acquisition systems, and closed-loop servo-control. The device is available in a SSOP-20 package, and is guaranteed over the 40°C to +85°C temperature range.
