DAC7624

Features: LOW POWER: 20mWUNIPOLAR OR BIPOLAR OPERATION SETTLING TIME: 10ms to 0.012%12-BIT LINEARITY AND MONOTONICITY: 40°C to +85°CRESET TO MID-SCALE (DAC7624) OR ZERO-SCALE (DAC7625)DATA READBACKDOUBLE-BUFFERED DATA INPUTSApplicationPROCESS CONTROL ATE PIN ELECTRONICSCLOSED-LOOP SERVO-CONTROL MO...

product image

DAC7624 Picture
See larger image
SeekIC No. : 004323760 Detail

DAC7624: Features: LOW POWER: 20mWUNIPOLAR OR BIPOLAR OPERATION SETTLING TIME: 10ms to 0.012%12-BIT LINEARITY AND MONOTONICITY: 40°C to +85°CRESET TO MID-SCALE (DAC7624) OR ZERO-SCALE (DAC7625)DATA READBACKD...

DAC7624 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DAC7624
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 LOW POWER: 20mW
 UNIPOLAR OR BIPOLAR OPERATION
SETTLING TIME: 10ms to 0.012%
 12-BIT LINEARITY AND MONOTONICITY: 40°C to +85°C
 RESET TO MID-SCALE (DAC7624) OR ZERO-SCALE (DAC7625)
 DATA READBACK
 DOUBLE-BUFFERED DATA INPUTS


Application

 PROCESS CONTROL
ATE PIN ELECTRONICS
 CLOSED-LOOP SERVO-CONTROL
MOTOR CONTROL
 DATA ACQUISITION SYSTEMS
 DAC-PER-PIN PROGRAMMERS


Pinout

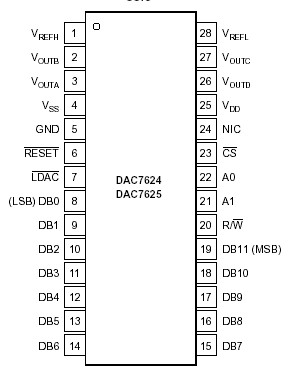

Connection Diagram


Specifications

VDD to VSS ........................................................................... 0.3V to 11V
VDD to GND.......................................................................... 0.3V to 5.5V
VREFL to VSS ............................................................ 0.3V to (VDD VSS)
VDD to VREFH ............................................................ 0.3V to (VDD VSS)
VREFH to VREFL ......................................................... 0.3V to (VDD VSS)
Digital Input Voltage to GND ..................................... 0.3V to VDD + 0.3V
Digital Output Voltage to GND ................................... 0.3V to VDD + 0.3V
Maximum Junction Temperature ................................................... +150°C
Operating Temperature Range ........................................ 40°C to +85°C
Storage Temperature Range ......................................... 65°C to +150°C
Lead Temperature (soldering, 10s) ............................................... +300°C


Description

The DAC7624 and DAC7625 are 12-bit quad voltage output digital-to-analog converters with guaranteed 12- bit monotonic performance over the specified temperature range. They accept 12-bit parallel input data, have double-buffered DAC input logic (allowing simultaneous update of all DACs), and provide a readback mode of the internal input registers. An asynchronous reset clears all registers to a mid-scale code of 800H (DAC7624) or to a zero-scale of 000H (DAC7625). The DAC7624 and DAC7625 can operate from a single +5V supply or from +5V and 5V supplies.

Low power and small size per DAC make the DAC7624 and DAC7625 ideal for automatic test equipment, DAC-per-pin programmers, data acquisition systems,
and closed-loop servo-control. The DAC7624 and DAC7625 are available in a 28-pin plastic doublewide or a 28-lead SOIC package, and offer guaranteed specifications over the 40°C to +85°C temperature range.
