DAC7621

Features: LOW POWER: 2.5mWFAST SETTLING: 7s to 1 LSB 1mV LSB WITH 4.095V FULL-SCALE RANGECOMPLETE WITH REFERENCE12-BIT LINEARITY AND MONOTONICITY OVER INDUSTRIAL TEMP RANGEASYNCHRONOUS RESET TO 0VApplicationPROCESS CONTROL DATA ACQUISITION SYSTEMSCLOSED-LOOP SERVO-CONTROL PC PERIPHERALS PORTABLE I...

product image

DAC7621 Picture
See larger image
SeekIC No. : 004323759 Detail

DAC7621: Features: LOW POWER: 2.5mWFAST SETTLING: 7s to 1 LSB 1mV LSB WITH 4.095V FULL-SCALE RANGECOMPLETE WITH REFERENCE12-BIT LINEARITY AND MONOTONICITY OVER INDUSTRIAL TEMP RANGEASYNCHRONOUS RESET TO 0VAp...

DAC7621 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DAC7621
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 LOW POWER: 2.5mW
 FAST SETTLING: 7s to 1 LSB
1mV LSB WITH 4.095V FULL-SCALE RANGE
 COMPLETE WITH REFERENCE
 12-BIT LINEARITY AND MONOTONICITY OVER INDUSTRIAL TEMP RANGE
 ASYNCHRONOUS RESET TO 0V


Application

 PROCESS CONTROL
DATA ACQUISITION SYSTEMS
 CLOSED-LOOP SERVO-CONTROL
PC PERIPHERALS
PORTABLE INSTRUMENTATION


Pinout

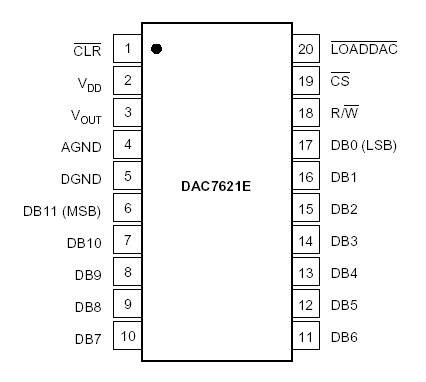

Connection Diagram


Specifications

VDD to GND .......................................................................... 0.3V to 6V
Digital Inputs to GND .............................................. 0.3V to VDD + 0.3V
VOUT to GND ........................................................... 0.3V to VDD + 0.3V
Power Dissipation ...................................................................... 325mW
Thermal Resistance, JA ........................................................... 150°C/W
Maximum Junction Temperature ................................................. +150°C
Operating Temperature Range ..................................... 40°C to +85°C
Storage Temperature Range ....................................... 65°C to +150°C
Lead Temperature (soldering, 10s) ............................................ +300°C


Description

The DAC7621 is a 12-bit digital-to-analog converter (DAC) with guaranteed 12-bit monotonicity performance over the industrial temperature range. It requires a single +5V supply and contains an input register, latch, 2.435V reference, DAC, and high speed rail-to-rail output amplifier. For a full-scale step, the output will settle to 1 LSB within 7ms. The device consumes 2.5mW (0.5mA at 5V).

The parallel interface is compatible with a wide variety of microcontrollers. The DAC7621 accepts a 12-bit parallel word, has a double-buffered input logic structure and provides data readback. In addition, two control pins provide a chip select (CS) function and asynchronous clear (CLR) input. The CLR input can be used to ensure that the DAC7621 output is 0V on power-up or as required by the application.

The DAC7621 is available in a 20-lead SSOP package and is fully specified over the industrial temperature range of 40°C to +85°C.
