DAC7617

Features: LOW POWER: 3mWSETTLING TIME: 10s to 0.012%12-BIT LINEARITY AND MONOTONICITY: 40°C to +85°C DOUBLE-BUFFERED DATA INPUTS SO-16 or SSOP-20 PACKAGES SINGLE SUPPLY +3V OPERATIONApplication PROCESS CONTROL ATE PIN ELECTRONICS CLOSED-LOOP SERVO-CONTROL MOTOR CONTROL DATA ACQUISITION SYSTEMS DAC...

product image

DAC7617 Picture
See larger image
SeekIC No. : 004323758 Detail

DAC7617: Features: LOW POWER: 3mWSETTLING TIME: 10s to 0.012%12-BIT LINEARITY AND MONOTONICITY: 40°C to +85°C DOUBLE-BUFFERED DATA INPUTS SO-16 or SSOP-20 PACKAGES SINGLE SUPPLY +3V OPERATIONApplication PROC...

DAC7617 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DAC7617
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 LOW POWER: 3mW
 SETTLING TIME: 10s to 0.012%
 12-BIT LINEARITY AND MONOTONICITY: 40°C to +85°C
DOUBLE-BUFFERED DATA INPUTS
SO-16 or SSOP-20 PACKAGES
SINGLE SUPPLY +3V OPERATION


Application

PROCESS CONTROL
ATE PIN ELECTRONICS
CLOSED-LOOP SERVO-CONTROL
MOTOR CONTROL
DATA ACQUISITION SYSTEMS
DAC-PER-PIN PROGRAMMERS


Pinout

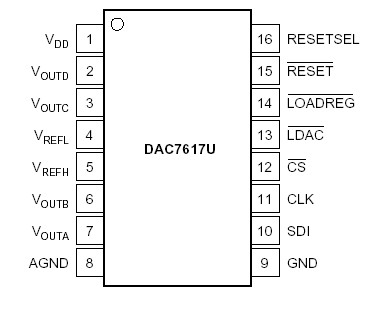

Connection Diagram


Specifications

VDD to GND ........................................................................ 0.3V to +5.5V
VREFL to GND ........................................................... 0.3V to (VDD + 0.3V)
VDD to VREFH ....................................................................... 0.3V to VDD
VREFH to VREFL ..................................................................... 0.3V to VDD
Digital Input Voltage to GND ..................................... 0.3V to VDD + 0.3V
Maximum Junction Temperature ................................................... +150°C
Operating Temperature Range ........................................ 40°C to +85°C
Storage Temperature Range ......................................... 65°C to +150°C
Lead Temperature (soldering, 10s) .............................................. +300°C


Description

The DAC7617 is a quad, serial input, 12-bit, voltage output Digital-to-Analog Converter (DAC) with guaranteed 12-bit monotonic performance over the 40°C
to +85°C temperature range. An asynchronous reset clears all registers to either mid-scale (800H) or zeroscale (000H), selectable via the RESETSEL pin. The individual DAC inputs are double buffered to allow for simultaneous update of all DAC outputs. The DAC7617 is powered from a single +3V supply.

Low power and small size makes the DAC7617 ideal for automatic test equipment, DAC-per-pin programmers, data acquisition systems, and closed-loop servocontrol. The device is available in SO-16 and SSOP-20 packages and is guaranteed over the 40°C to +85°C temperature range.
