DAC7616

Features: LOW POWER: 3mWSETTLING TIME: 10ms to 0.012%12-BIT LINEARITY AND MONOTONICITY: 40°C to +85°C USER SELECTABLE RESET TO MIDSCALE OR ZERO-SCALE SECOND-SOURCE for DAC8420 SO-16 or SSOP-20 PACKAGES SINGLE SUPPLY +3V OPERATIONApplication ATE PIN ELECTRONICS PROCESS CONTROL CLOSED-LOOP SERVO-CON...

product image

DAC7616 Picture
See larger image
SeekIC No. : 004323757 Detail

DAC7616: Features: LOW POWER: 3mWSETTLING TIME: 10ms to 0.012%12-BIT LINEARITY AND MONOTONICITY: 40°C to +85°C USER SELECTABLE RESET TO MIDSCALE OR ZERO-SCALE SECOND-SOURCE for DAC8420 SO-16 or SSOP-20 PACKA...

DAC7616 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DAC7616
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 LOW POWER: 3mW
 SETTLING TIME: 10ms to 0.012%
 12-BIT LINEARITY AND MONOTONICITY: 40°C to +85°C
USER SELECTABLE RESET TO MIDSCALE OR ZERO-SCALE
SECOND-SOURCE for DAC8420
SO-16 or SSOP-20 PACKAGES
SINGLE SUPPLY +3V OPERATION


Application

ATE PIN ELECTRONICS
PROCESS CONTROL
CLOSED-LOOP SERVO-CONTROL
MOTOR CONTROL
DATA ACQUISITION SYSTEMS
DAC-PER-PIN PROGRAMMERS


Pinout

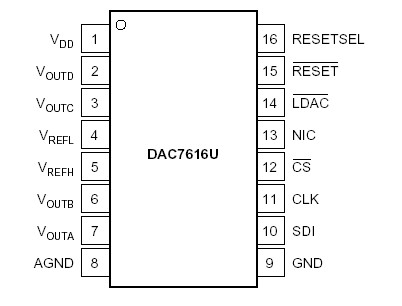

Connection Diagram


Specifications

VDD to GND ........................................................................ 0.3V to +5.5V
VREFL to GND ........................................................... 0.3V to (VDD + 0.3V)
VDD to VREFH ........................................................................ 0.3V to VDD
VREFH to VREFL ...................................................................... 0.3V to VDD
Digital Input Voltage to GND ...................................... 0.3V to VDD + 0.3V
Maximum Junction Temperature ................................................... +150°C
Operating Temperature Range ........................................ 40°C to +85°C
Storage Temperature Range ......................................... 65°C to +150°C
Lead Temperature (soldering, 10s) .............................................. +300°C


Description

The DAC7616 is a quad, serial input, 12-bit, voltage output Digital-to-Analog Converter (DAC) with guaranteed 12-bit monotonic performance over the 40°C
to +85°C temperature range. An asynchronous reset clears all registers to either mid-scale (800H) or zeroscale (000H), selectable via the RESETSEL pin. The DAC7616 is powered from a single +3V supply.

Low power and small size makes the DAC7616 ideal for process control, data acquisition systems, and closed-loop servo-control. The device is available in SO-16 or SSOP-20 packages, and is guaranteed over the 40°C to +85°C temperature range.
