DAC7614

Features: LOW POWER: 20mWUNIPOLAR OR BIPOLAR OPERATIONSETTLING TIME: 10ms to 0.012%12-BIT LINEARITY AND MONOTONICITY: 40°C to +85°CUSER SELECTABLE RESET TO MIDSCALE OR ZERO-SCALESECOND-SOURCE for DAC8420SMALL 20-LEAD SSOP PACKAGEApplicationATE PIN ELECTRONICSPROCESS CONTROLCLOSED-LOOP SERVO-CONTRO...

product image

DAC7614 Picture
See larger image
SeekIC No. : 004323755 Detail

DAC7614: Features: LOW POWER: 20mWUNIPOLAR OR BIPOLAR OPERATIONSETTLING TIME: 10ms to 0.012%12-BIT LINEARITY AND MONOTONICITY: 40°C to +85°CUSER SELECTABLE RESET TO MIDSCALE OR ZERO-SCALESECOND-SOURCE for DA...

DAC7614 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DAC7614
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 LOW POWER: 20mW
 UNIPOLAR OR BIPOLAR OPERATION
 SETTLING TIME: 10ms to 0.012%
 12-BIT LINEARITY AND MONOTONICITY: 40°C to +85°C
 USER SELECTABLE RESET TO MIDSCALE OR ZERO-SCALE
 SECOND-SOURCE for DAC8420
 SMALL 20-LEAD SSOP PACKAGE


Application

 ATE PIN ELECTRONICS
 PROCESS CONTROL
 CLOSED-LOOP SERVO-CONTROL
 MOTOR CONTROL
 DATA ACQUISITION SYSTEMS


Pinout

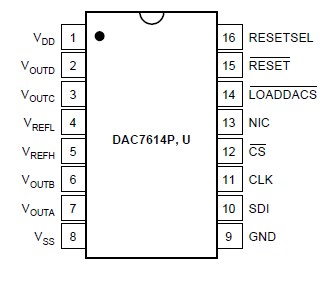

Connection Diagram


Specifications

VDD to VSS ........................................................................... 0.3V to +11V
VDD to GND ........................................................................ 0.3V to +5.5V
VREFL to VSS ............................................................... 0.3V to (VDD VSS)
VDD to VREFH .............................................................. 0.3V to (VDD VSS)
VREFH to VREFL ............................................................ 0.3V to (VDD VSS)
Digital Input Voltage to GND ....................................... 0.3V to VDD + 0.3V
Maximum Junction Temperature ..................................................... +150°C
Operating Temperature Range .......................................... 40°C to +85°C
Storage Temperature Range ........................................... 65°C to +150°C
Lead Temperature (soldering, 10s) ................................................ +300°C


Description

The DAC7614 is a quad, serial input, 12-bit, voltage output digital-to-analog converter (DAC) with guaranteed 12-bit monotonic performance over the 40°C to +85°C temperature range. An asynchronous reset clears all registers to either mid-scale (800H) or zeroscale (000H), selectable via the RESETSEL pin. The device can be powered from a single +5V supply or from dual +5V and 5V supplies.

Low power and small size makes the DAC7614 ideal for process control, data acquisition systems, and closed-loop servo-control. The device is available in 16-pin plastic DIP, 16-lead SOIC, or 20-lead SSOP packages, and is guaranteed over the 40°C to +85°C temperature range.
