DAC7613

Features: LOW POWER: 1.8mWUNIPOLAR OR BIPOLAR OPERATIONSETTLING TIME: 10ms to 0.012%12-BIT LINEARITY AND MONOTONICITY:40°C to +85°CDATA READBACKDOUBLE-BUFFERED DATA INPUTS24-LEAD SSOP PACKAGEApplicationPROCESS CONTROLCLOSED-LOOP SERVO-CONTROLMOTOR CONTROLDATA ACQUISITION SYSTEMSPinoutSpecification...

product image

DAC7613 Picture
See larger image
SeekIC No. : 004323754 Detail

DAC7613: Features: LOW POWER: 1.8mWUNIPOLAR OR BIPOLAR OPERATIONSETTLING TIME: 10ms to 0.012%12-BIT LINEARITY AND MONOTONICITY:40°C to +85°CDATA READBACKDOUBLE-BUFFERED DATA INPUTS24-LEAD SSOP PACKAGEApplica...

DAC7613 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DAC7613
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 LOW POWER: 1.8mW
 UNIPOLAR OR BIPOLAR OPERATION
 SETTLING TIME: 10ms to 0.012%
 12-BIT LINEARITY AND MONOTONICITY:40°C to +85°C
 DATA READBACK
 DOUBLE-BUFFERED DATA INPUTS
 24-LEAD SSOP PACKAGE


Application

 PROCESS CONTROL
 CLOSED-LOOP SERVO-CONTROL
 MOTOR CONTROL
 DATA ACQUISITION SYSTEMS


Pinout

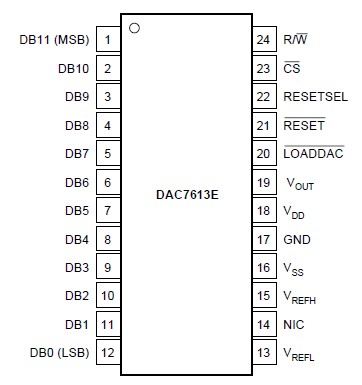

Connection Diagram


Specifications

VDD to VSS ........................................................................... 0.3V to 11V
VDD to GND.......................................................................... 0.3V to 5.5V
VREFL to VSS ............................................................. 0.3V to (VDD VSS)
VDD to VREFH ............................................................ 0.3V to (VDD VSS)
VREFH to VREFL ......................................................... 0.3V to (VDD VSS)
Digital Input Voltage to GND .................................... 0.3V to VDD + 0.3V
Digital Output Voltage to GND .................................. 0.3V to VDD + 0.3V
Maximum Junction Temperature ................................................... +150°C
Operating Temperature Range ....................................... 40°C to +85°C
Storage Temperature Range ........................................ 65°C to +150°C
Lead Temperature (soldering, 10s) ............................................. +300°C


Description

The DAC7613 is a 12-bit, voltage output digital-toanalog converter with guaranteed 12-bit monotonic performance over the specified temperature range. The DAC7613 accepts a 12-bit parallel input data, has double-buffered DAC input logic and provides a readback mode of the internal input register. An asynchronous reset clears all registers to a mid-scale code of 800H or to a zero-scale of 000H. The DAC7613 can operate from a single +5V supply or from +5V and 5V supplies.

Low power and small size makes the DAC7613 ideal for data acquisition systems and closed-loop servocontrol. The DAC7613 is available in a plastic SSOP-24 package, and offers guaranteed specifications over the 40°C to +85°C temperature range.
