DAC716

Features: SERIAL DIGITAL INTERFACEVOLTAGE OUTPUT: 0 to +10V±2 LSB INTEGRAL LINEARITYPRECISION INTERNAL REFERENCELOW NOISE: 120nV/ÖHz Including Reference16-LEAD PLASTIC SKINNY DIP AND PLASTIC SOIC PACKAGESPinoutSpecifications+VCC to Common .........................................................

product image

DAC716 Picture
See larger image
SeekIC No. : 004323729 Detail

DAC716: Features: SERIAL DIGITAL INTERFACEVOLTAGE OUTPUT: 0 to +10V±2 LSB INTEGRAL LINEARITYPRECISION INTERNAL REFERENCELOW NOISE: 120nV/ÖHz Including Reference16-LEAD PLASTIC SKINNY DIP AND PLASTIC SO...

DAC716 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DAC716
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 SERIAL DIGITAL INTERFACE
 VOLTAGE OUTPUT: 0 to +10V
 ±2 LSB INTEGRAL LINEARITY
 PRECISION INTERNAL REFERENCE
 LOW NOISE: 120nV/ÖHz Including Reference
 16-LEAD PLASTIC SKINNY DIP AND PLASTIC SOIC PACKAGES


Pinout

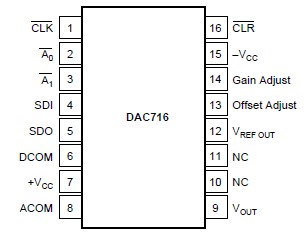

Connection Diagram


Specifications

+VCC to Common .................................................................... 0V to +17V
VCC to Common .................................................................... 0V to 17V
+VCC to VCC ....................................................................................... 34V
ACOM to DCOM ............................................................................... ±0.5V
Digital Inputs to Common ............................................. 1V to (VCC 0.7V)
External Voltage Applied to BPO and Range Resistors ..................... ±VCC
VREF OUT ......................................................... Indefinite Short to Common
VOUT ............................................................... Indefinite Short to Common
SDO ............................................................... Indefinite Short to Common
Power Dissipation .......................................................................... 750mW
Storage Temperature ...................................................... 60°C to +150°C
Lead Temperature (soldering, 10s) ................................................ +300°C


Description

The DAC716 is a complete monolithic D/A converter including a +10V temperature compensated voltage reference, current-to-voltage amplifier, a high-speed synchronous serial interface, a serial output which allows cascading multiple converters, and an asynchronous clear function which immediately sets the output voltage to zero.

The output voltage range is 0 to +10V while operating from ±12V to ±15V supplies, and the gain and bipolar offset adjustments are designed so that they can be set via external potentiometers or external D/A converters. The output amplifier is protected against shortcircuiting to ground.

The 16-pin DAC716 is available in a plastic 0.3" DIP and a wide-body plastic SOIC package. The DAC716P, U, PB, and UB are specified over the 40°C to +85°C range while the DAC716UK and PK are specified over the 0°C to +70°C range.
